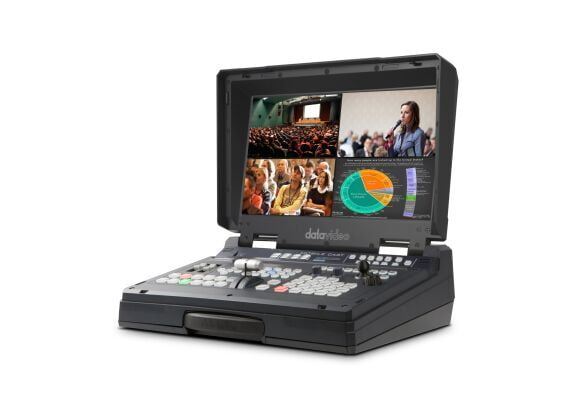

Datavideo HS-1600T MKII HDBaseT production unit with streaming
SPECIFICATION
Model Number
HS-1600T MARK II
Video Standard
HD & SD
Video Format
1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i/p 50Hz
480i/p 59.94Hz
Input Routable / Crosspoint
----
Video Input
3 x HDBaseT
1 x HDMI
Computer Graphic Interface
1 via HDMI
Down-converted Output
Yes
Video Output
3x HDMI PGM
1x HDBaseT PGM
1x STREAM (RJ-45)
Analogue Audio Input
2x Balanced XLR
1x Stereo RCA (L/R)
De-embedded Digital Audio
Analogue Audio Output
1x Stereo headphone
Digital Embedded Audio Support
Input 2 channels, Output 2 channels
Audio Delay Calibration
----
A+V Switching
----
USK
1x USK support Lumakey
DSK
----
Picture in Picture
1
Logo Insertion
----
Title Creator
----
Built-in Audio Mixer
Yes, 4 channels
Built-in Monitor Display
17.3” HD TFT LED backlit, 1920x1080 pix
Built-in Intercom & Tally
----
Streaming
Streaming
H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps
Streaming Audio Encode
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
Streaming Protocol
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Streaming Control
Web browser UI for configuration and control Socket commands
Recording File System
FAT, exFAT, NTFS
Recording File Format
MP4
Streaming & Recording Setting Control
Web UI for system configuration and control
Others
Special Features
Built-in camera controller
Dimension (LxWxH)
455 x 355 x 134 mm
Power
DC 48V, 4.16A
Operating Temp. Range
0~40 °C
What's in the Box
1 x HS-1600T MARK II Product
1 x AD Switch DC 56V with AC Cord
3 x Ethernet Cable
