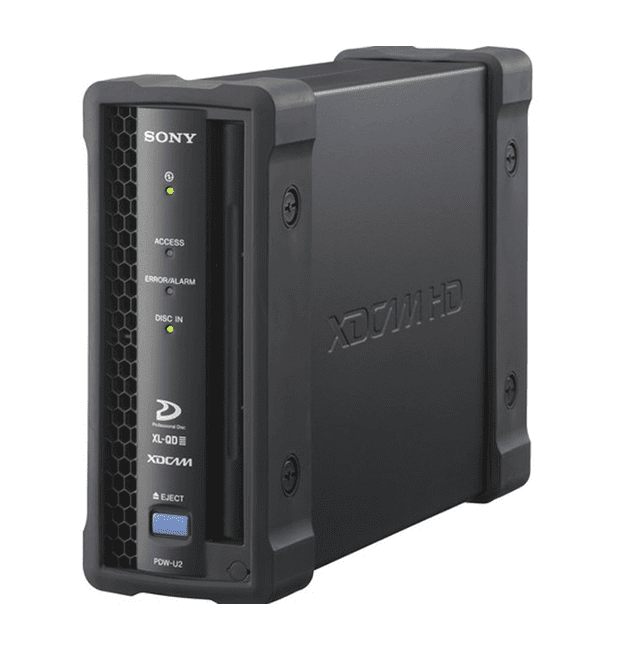

Sony PDW-U2 USB 3.0 XDCAM Disc Drive
Non-returnable
$4,831.92
Tags:
The PDW-U2 is a compact, mobile and highly cost-effective drive for use with PC's. This drive utilizes a new generation dual channel head system which is capable of reading XDCAM discs up to 2.6x faster than its predecessor the PDW-U1.
Product Details
SPECIFICATION
Power Requirements
DC 12 V (AC adaptor supplied)
Power Consumption
19.2 W
Operating Temperature
5°C to 40°C
42°F to 104°F
42°F to 104°F
Storage Temperature
-20°C to +60°C
-4°F to +140°F
-4°F to +140°F
Humidity
20% to 90% (relative humidity)
Mass
1.7 kg
3 lb 12 oz
3 lb 12 oz
Dimensions (W x H x D) *1
67.4 x 164 x 219 mm (excluding protrusions)
2 3/4 x 6 1/2 x 8 5/8 inches (excluding protrusions)
2 3/4 x 6 1/2 x 8 5/8 inches (excluding protrusions)
Recording/Playback Format (Video)
MPEG HD422 (CBR, 50 Mbps)
MPEG HD:
- HQ mode (VBR, maximum bit rate: 35 Mbps),
- SP mode (CBR, 25 Mbps),
- LP mode (VBR, maximum bit rate: 18 Mbps),
MPEG IMX (CBR, 50/40/30 Mbps)
DVCAM (CBR, 25 Mbps)
MPEG HD:
- HQ mode (VBR, maximum bit rate: 35 Mbps),
- SP mode (CBR, 25 Mbps),
- LP mode (VBR, maximum bit rate: 18 Mbps),
MPEG IMX (CBR, 50/40/30 Mbps)
DVCAM (CBR, 25 Mbps)
Recording/Playback Format (Audio)
MPEG HD422: 8 ch/24 bits/48kHz,
MPEG HD: 4/2 ch/16bits/48kHz,
MPEG IMX: 8 ch/16 bits/48 kHz, or 4 ch/24 bits/48 kHz,
DVCAM: 4 ch/16 bits/48 kHz
MPEG HD: 4/2 ch/16bits/48kHz,
MPEG IMX: 8 ch/16 bits/48 kHz, or 4 ch/24 bits/48 kHz,
DVCAM: 4 ch/16 bits/48 kHz
Recording/Playback Format (Proxy Video)
MPEG-4
Recording/Playback Format (Proxy Audio)
A-law (8 ch/8 bits/8 kHz)
Recording/Playback Time (MPEG HD422)
50 Mbps: Approx. 95 min (PFD50DLA), Approx. 43 min (PFD23A)
Recording/Playback Time (MPEG HD)
35 Mbps, 4-ch audio: More than 145 min (PFD50DLA), More than 65 min (PFD23A)
35 Mbps, 2-ch audio (playback only): More than 150 min (PFD50DLA), More than 68 min (PFD23A)
25 Mbps, 4-ch audio: Approx. 190 min (PFD50DLA), Approx. 85 min (PFD23A)
25 Mbps, 2-ch audio (playback only): Approx. 200 min (PFD50DLA), Approx. 90 min (PFD23A)
18 Mbps, 4-ch audio (playback only): More than 248 min (PFD50DLA), More than 112 min (PFD23A)
18 Mbps, 2-ch audio (playback only): More than 265 min (PFD50DLA), More than 122 min (PFD23A)
35 Mbps, 2-ch audio (playback only): More than 150 min (PFD50DLA), More than 68 min (PFD23A)
25 Mbps, 4-ch audio: Approx. 190 min (PFD50DLA), Approx. 85 min (PFD23A)
25 Mbps, 2-ch audio (playback only): Approx. 200 min (PFD50DLA), Approx. 90 min (PFD23A)
18 Mbps, 4-ch audio (playback only): More than 248 min (PFD50DLA), More than 112 min (PFD23A)
18 Mbps, 2-ch audio (playback only): More than 265 min (PFD50DLA), More than 122 min (PFD23A)
Recording/Playback Time (MPEG IMX)
50 Mbps: Approx. 100 min (PFD50DLA), Approx. 45 min (PFD23A)
40 Mbps: Approx. 120 min (PFD50DLA), Approx. 55 min (PFD23A)
30 Mbps: Approx. 150 min (PFD50DLA), Approx. 68 min (PFD23A)
40 Mbps: Approx. 120 min (PFD50DLA), Approx. 55 min (PFD23A)
30 Mbps: Approx. 150 min (PFD50DLA), Approx. 68 min (PFD23A)
Recording/Playback Time (DVCAM)
25 Mbps: Approx. 185 min (PFD50DLA), Approx. 85 min (PFD23A)
Media Drive
Media Type
Professional Disk Drive (x1)
Input/Output
USB
Super Speed USB (USB 3.0) (x1)
Supplied Accessories
Supplied Accessories
Operation manual (1)
XDCAM Drive Software (1)
XDCAM Browse Software (1)
XDCAM Drive Software (1)
XDCAM Browse Software (1)
