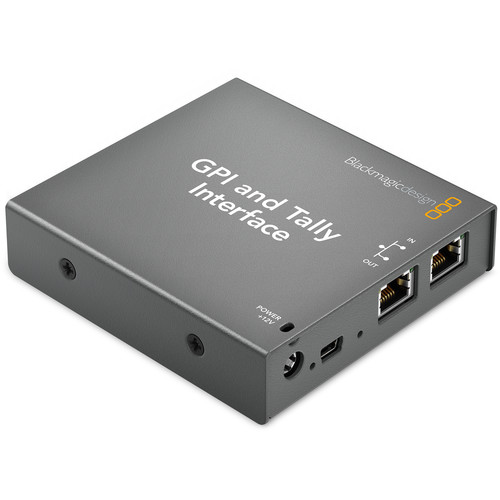

Blackmagic Design GPI & Tally Interface for Atem Production Switchers
The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation.
Specification
Connections | dd |
Contact Closure | 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs |
Inputs | Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA) |
Outputs | Mechanical relay contact closure to ground (maximum 30 V @ 1 A) |
Ethernet | 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment |
Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates |
Extras | |
Software Included | Configured via ATEM Switcher utility |
Firmware Upgrade | Firmware built into software driver. Loaded at system startup or via updater software |
Operating System | Microsoft Windows 7 and Apple Mac OS X |
Power Supply | 12 V power supply included with international socket adapters for all countries |
