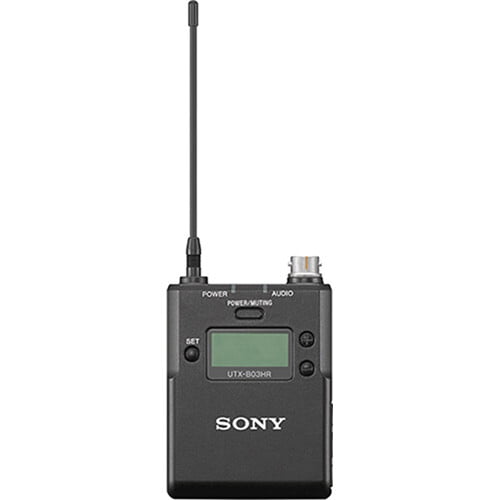

Sony UTX-B03HR/K21 UWP-D Bodypack Transmitter
The UTX-B03HR body-pack transmitter forms part of a complete UWP-D audio system offering the sound quality of digital audio processing combined with the reliability of analogue FM modulation.
Specifications
Oscillator Type: Crystal-controlled PLL Synthesizer
Antenna Type: 1/4 wave length wire
Type of Emission: F3E
Carrier Frequencies: Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand
- UTX-B03/21: 470.025 MHz to 542.000 MHz (not available in Australia, Malaysia, Vietnam or New Zealand)
- UTX-B03/33: 566.025 MHz to 633.000 MHz (not available in New Zealand)
- UTX-B03/42: 638.025 MHz to 694.000 MHz
RF Power: Americas, Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand, China 30mW / 5mW
Input Connector: Sony SMC9-4S (female)
Reference Input Level:
- MIC: -60 dBV (at 0-dB attenuator level)
- LINE: +4 dBu
Audio Attenuator Adjustment Range: 0dB to 27dB (in 3-dB steps): Mic input
Frequency Response: Americas, Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand Transmission: 23Hz to 18kHz (typical)
Signal-to-Noise Ratio: 96dB (max deviation, A-weighted)
Audio Delay: Approx. 0.35 msec
Pilot Tone Signal: 32 kHz/ 32.382 kHz/ 32.768 kHz
Display: LCD
- Power Requirements:
- DC 3.0 V (with two AA-size alkaline (LR6) batteries)
- DC 5.0V (via USB micro-B)
Battery Operating Time: Americas, Europe, UAE, South Africa Approx. eight hours with Sony's AA-size alkaline (LR6) batteries at 25°C(77°F) at 30-mW
Operating Temperature:
- 0°C to 50°C
- 32°F to 122°F
Storage/Transport Temperature:
- -20°C to +55°C
- -4°F to +131°F
Dimensions: 63 x 82 x 20 mm (excluding the anntenas) (W x H x D)
Mass: Approx. 151 g (including batteries)
