Litepanels Astra Soft Bi-Color LED Panel Duo + Astra 6X Bi-Color LED Panel Traveler Trio V-Mount Kit

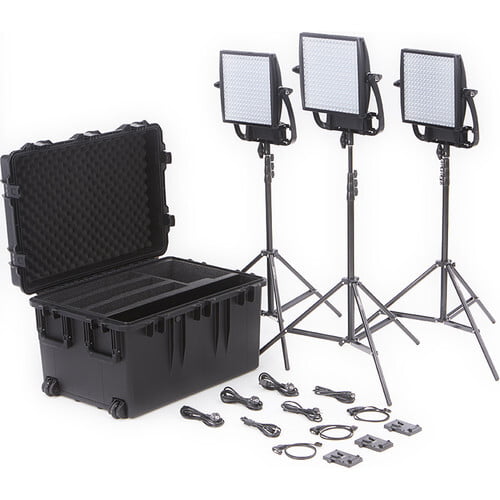

V-mount Astra Bi-Color LED Traveler Trio Kit has everything you need for location shooting. The kit contains two Astra Soft Bi-Color LED Panels, one Astra 6X Bi-Color LED Panel, three V-mount battery brackets, three light stands, and a hard wheeled case for storage and transport.
Specification
Light Fixture
Beam Angle | 94° |
Color Temperature | 3200 to 5600K |
Color Accuracy Standard | CRI 95 |
Cooling System | Fan/Passive Combo |
Dimming | Yes, 0 to 100% (Continuous) |
Display | None |
Housing Material | Aluminum |
Photometrics | 94° at 3200K: |
Fixture Dimensions | 17.7 x 16.3 x 5.3" / 45.0 x 41.4 x 13.5 cm |
Fixture Weight | 7.1 lb / 3.22 kg |
Connectors
Power Input Connector | 3-Pin XLR |
Mounting
Yoke Mount | TVMP/ Hex Bolt |
Fixture Mount | 5/8" Receiver |
Yoke
Yoke Type | Yoke/Bracket |
Power
AC Input Power | 120 to 240 VAC, 50 / 60 Hz |
AC Input Power | VAC50 / 60 Hz |
DC Input Power | 24 VDC |
Power Source | AC Adapter, External Battery |
Max Power Consumption | 105 W |
Power Pass-Thru | No |
Internal Battery
Physical
IP Rating | IP20 |
Packaging Info
Package Weight | 11.5 lb |
Box Dimensions (LxWxH) | 21.5 x 20.5 x 6" |
Litepanels Astra 6X Bi-Color LED Panel Specs
Light Fixture
Beam Angle | 46° |
Color Temperature | 3200 to 5600K |
Color Accuracy Standard | CRI 95 at 3200K |
Cooling System | Fan/Passive Combo |
Dimming | Yes, 0 to 100% |
Display | None |
Housing Material | Aluminum |
Photometrics | 46° at 3200K: |
Fixture Dimensions | 17.7 x 16.3 x 5.3" / 45.0 x 41.4 x 13.4 cm |
Fixture Weight | 7.0 lb / 3.2 kg |
Connectors
Power Input Connector | 3-Pin XLR |
Mounting
Yoke Mount | TVMP/ Hex Bolt |
Fixture Mount | 5/8" Receiver |
Accessory Mount | None |
Remote Operation
Remote Control Type | Bluetooth, DMX |
Power
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 24 VDC |
Power Source | AC Adapter, External Battery |
Max Power Consumption | 105 W |
Power Pass-Thru | No |
Physical
IP Rating | IP20 |
Packaging Info
Package Weight | 11.9 lb |
Box Dimensions (LxWxH) | 21.4 x 20.3 x 6" |
Litepanels Battery Plate For Astra 1x1 LED Panel (V-Mount) Specs
General
Mount | V-Mount |
Packaging Info
Package Weight | 0.53 lb |
Box Dimensions (LxWxH) | 14.05 x 5.65 x 3.45" |
