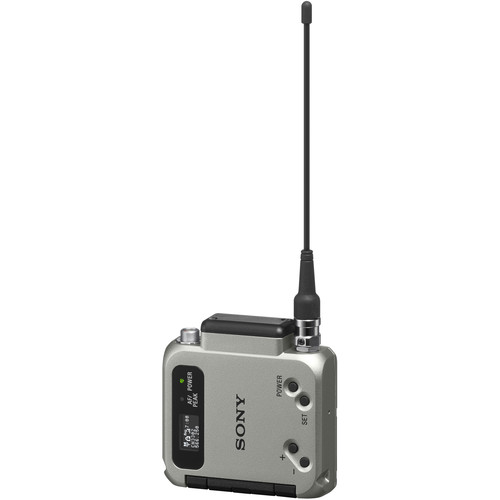

Sony DWT-B03R/L - Digital Wireless Transmitter
The Sony DWT-B03R is a third-generation DWX Digital Series wireless miniature bodypack transmitter compatible with the DWR-R03D rackmount and DWR-S03 slot-in receivers as well as all previous DWX Digital Series receivers.
Specifications
System
Wireless Transmission | Digital UHF |
RF Frequency Band | 470.125 to 607.875 MHz |
RF Bandwidth | 140 MHz |
Frequency Step Size | 25 kHz |
Max Operating Range | 300' / 91.4 m |
Latency | 0.7 to 3.7 ms |
Encryption | AES 256, Proprietary |
Modulation | Proprietary |
Transmitter
Form Factor | Bodypack |
RF Output Power | 2 / 10 / 25 mW (Switchable) |
Audio I/O | 1 x LEMO 3-Pin Female Input (Lockable) |
Audio Input Level | -22 to +24 dBu |
Gain Range | 0 to +48 dB (3 dB Steps) |
Frequency Response | 20 Hz to 22 kHz |
Sync Method | Proprietary |
Antenna | 1 x 1/4 Wave External, Detachable |
Power Requirements | Battery |
Battery Type | 1 x Rechargeable (Included, Replaceable) |
Internal Battery Capacity | 1240 mAh |
Approx. Battery Life | 7 Hours (Lithium Rechargeable) |
Display & Indicators | 1 x OLED (Audio Level, Battery Status, Channel, Multifunction, Peak, RF Output Power, Signal Strength, Sync) |
Housing | Magnesium |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Dimensions | 2.1 x 2.4 x 0.7" / 53 x 60 x 17 mm (without Antennas) |
Weight | 3.5 oz / 99 g |
