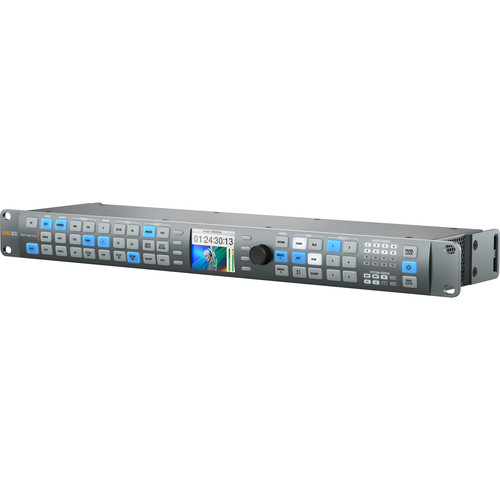

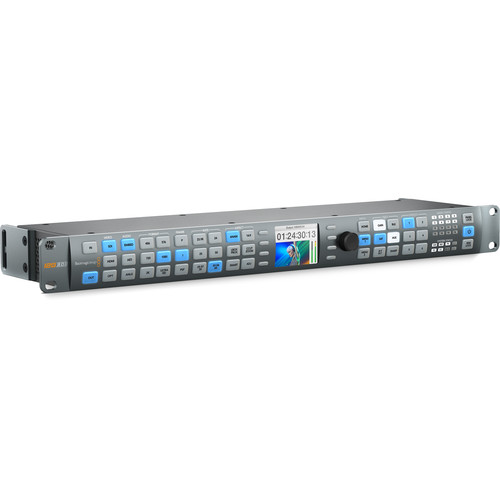

Blackmagic Design Teranex AV (SFP Optical Module not included)

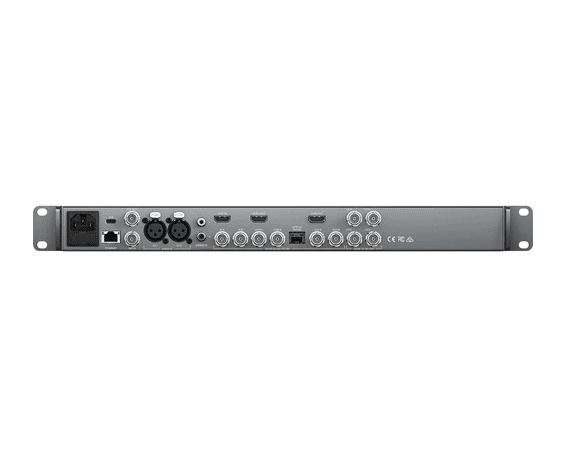

SDI Video Inputs

1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.

SDI Video Input L oops

1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.

SDI Video Outputs

1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.

Quad SDI Video Outputs

4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs.

HDMI Video Inputs

1x HDMI 2.0 type A connector. YUV or RGB, auto switching.

HDMI Video Loop Inputs

1x HDMI 2.0 type A connector. Active Input loop.

HDMI Video Outputs

1x HDMI 2.0 type A connector. YUV or RGB, user selectable.

SDI Audio Inputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

SDI Audio Outputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

HDMI Audio Inputs

8 channels in SD, HD, 3G HD, 2K and Ultra HD.

HDMI Audio Outputs

8 channels in SD, HD, 3G HD, 2K and Ultra HD.

Optical Fiber Connection (optional)

1x SMPTE optical fiber SFP socket.

Optical Fiber Video Inputs

1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.

Optical Fiber Video Outputs

1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.

Optical Fiber Audio Inputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

Optical Fiber Audio Outputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

Analog Audio Inputs

AES/EBU Digital Audio Inputs

2x XLR - 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs)

Dolby® Support Built In

Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.

Timecode Inputs

Support for VITC/ATC. No support for LTC.

Timecode Outputs

Support for VITC/ATC. No support for LTC.

Multi Rate Support

SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.

Reference Input

1x BNC - Black Burst in SD or Tri-level sync in HD.

Reference Output

1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.

Computer Interface

1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration.

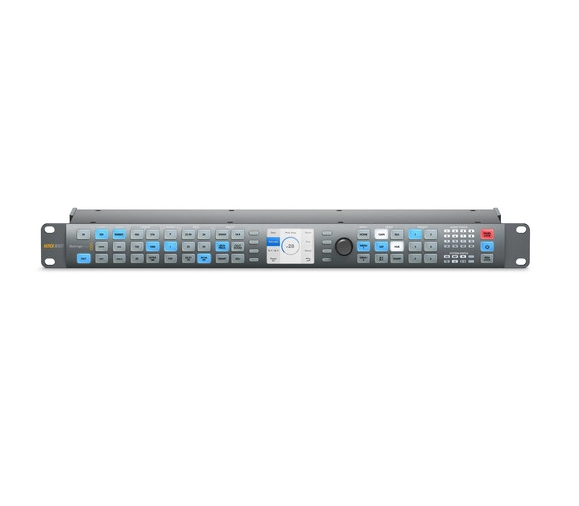

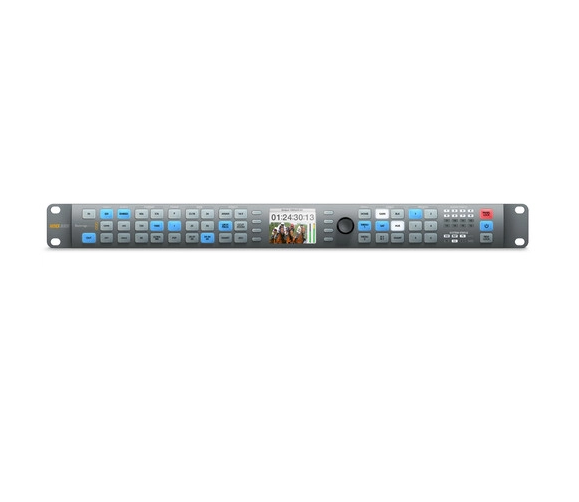

Processor Interface

Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.

Aspect Ratio Conversion

Real time variable and fixed aspect ratio conversions.

Real Time Video Processing

Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control

Low Latency Processing

Real time processing with 2 frame latency, available for select format conversions.

Format Conversion

Real time up conversion, down conversion , cross conversion and SD/HD/Ultra HD standards conversion.

Colorspace Conversion

Hardware based real time

Still Store

Capture a video frame into non-volatile memory from the current input signal or freeze frame buffer.

Freeze Frame

Temporarily freeze incoming live video.

Test Patterns

SMPTE 75% Bars; full field color bars 75%; convergence grid; multiburst ; black with selectable audio tones and selectable horizontal pattern motion.

Output Switching

Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video. The transition rate between output choices has a range of 0 to 5 seconds. A transition forces a dissolve through black.

Software Control

Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac.

Internal Software Upgrade

Via USB type C using the included Teranex Setup application.

Power Supply

1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50‑60Hz

Typical Power Consumption

42 watts

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing
