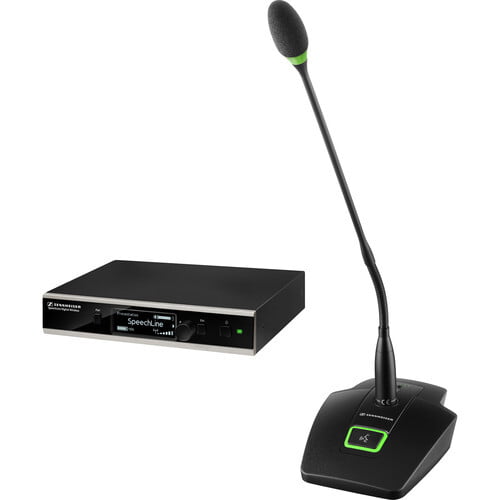

Sennheiser SpeechLine Digital Wireless Microphone Set
The SpeechLine Digital Wireless Microphone Set from Sennheiser includes an SL Table Stand 153-S DW, a MEG 14-40-L-II B gooseneck microphone with integrated LED ring, an SL Rack Receiver DW with power supply, a BA 40 rechargeable battery, and a rackmount kit.
SPECIFICATION
Frequency response
75 to 20,000 Hz
THD, total harmonic distortion
typ. 0.1 %
Power consumption
350 mA
Storage temperature
-20 °C to 70 °C, (-4 °F to 158 °F)
Operating temperature
0 °C to 40 °C (14 °F to 131 °F)
Signal-to-noise ratio
> 90 dB(A)
Goose neck length
40 cm
RF output power
adaptive, up to 250 mW (country-specific)
Operating time
typ. 10h with BA 40
Power supply
12 V DC
Audio output level (balanced)
max. -18 dBu, typ. -24 dBu
Audio output level (unbalanced)
max. +6 dBu
Dynamic range
> 120 dB(A)
Frequency range
EU: 1,880 to 1,900 MHz
USA: 1,920 to 1,930 MHz
Brazil: 1,910 to 1,920 MHz
Taiwan: 1,880 to 1,895 MHz
Japan: 1,893 to 1,906 MHz
Input impedance
30 kΩ
Max. Input voltage
1.7 V RMS
RF sensitivity
< -90 dBm
Sampling rates
24 bit/48 kHz
Connection
Audio Out: XLR 3M
Audio Out: 2 x RCA
Network: RJ 45
XLR Microphone Inputs
XLR 5F
