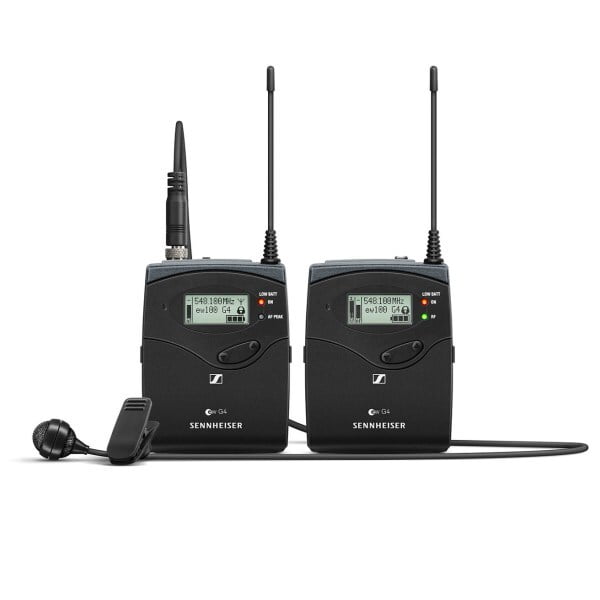

Sennheiser EW 512P G4-CW

Frequency range

AS: 520 - 558 MHz

Aw+: 470 - 558 MHz

Bw: 626 - 698 MHz

Cw: 718 - 790 MHz

Dw: 790 - 865 MHz

GBw: 606 - 678 MHz

Gw: 558 - 626 MHz

Gw1: 558 - 608 MHz

JB: 806 - 810 MHz

K+: 925 - 937,5 MHz

Bw: 626 - 698 MHz

Cw: 718 - 790 MHz

Dimensions

Approx. 82 x 64 x 24 mm

Compander

Sennheiser HDX

THD, total harmonic distortion

≤ 0.9 %

Weight

(incl. batteries) approx. 130 g

Audio output

3.5 mm jack socket: +17 dBu (mono, balanced)

Signal-to-noise ratio

Line: ≥ 110 dBA, Phones: approx. 90 dBA

Switching bandwidth

up to 88 MHz

Peak deviation

±48 kHz

Nominal deviation

±24 kHz

Operating time

Typically 8 h

Modulation

Wideband FM

Power supply

2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption

at nominal voltage: typ. 140 mA

with receiver switched off: ≤ 25 µA

Adjacent channel rejection

Typically ≥ 65 dB

Intermodulation attenuation

Typically ≥ 65 dB

Powering

3 V battery / 2.4 V rechargeable battery

Receiving frequency

Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

RF sensitivity

< 1.6 μV for 52 dBA eff S/N

Squelch

low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV

Temperature Range

-10 °C to +55 °C

Receiver Principle

Adaptive diversity

Blocking

≥ 70 dB

SK 500 G4

Dimensions

Approx. 82 x 64 x 24 mm

Compander

Sennheiser HDX

THD, total harmonic distortion

≤ 0.9 %

Weight

(incl. batteries) approx. 160 g

Signal-to-noise ratio

≥ 115 dBA

RF output power

switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

Switching bandwidth

up to 88 MHz

Peak deviation

±48 kHz

Nominal deviation

±24 kHz

Operating time

Typically 8 h

Modulation

Wideband FM

Power supply

2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption

at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 µA

Input impedance

40 kΩ, unbalanced / 1 MΩ

Max. Input voltage

3 Veff

Powering

3 V battery / 2.4 V rechargeable battery

Transmission frequency

Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

AF frequency response

Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz

Temperature Range

-10 °C to +55 °C

Frequency stability

≤ ±15 ppm

MKE 2

Connector

3.5 mm jack

Frequency response

20 to 20.000 Hz ± 3 dB

Max. sound pressure level

142 dB

Cable length

approx. 1.60 m

Transducer principle

pre-polarized condensor microphone

Pick-up pattern

omni-directional

Sensitivity in free field, no load (1kHz)

5 mV/Pa, ± 3 dB

Equivalent noise level

26 dB

Equivalent noise level weighted as per CCIR

39 dB
