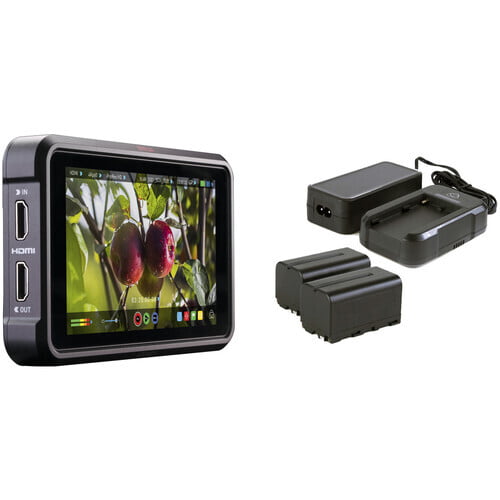

Atomos Ninja V 5" 4K HDMI Recording Monitor Kit with 2 L-Series Batteries, Charger and Power Adapter

Panel Type

IPS-Type LCD

Display Size

5.0" / 12.7 cm

Resolution

Aspect Ratio

16:9

Touchscreen

Yes

Maximum Brightness

1000 cd/m²

Bit Depth / Color Support

8-Bit+FRC (1.07 Billion Colors)

Pixels Per Inch (ppi)

423 ppi

Color Gamut

100% Rec. 709

Real-Time LUT Monitoring

SDR

Image Controls

Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra

Video

1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Output

Embedded Audio

HDMI: 2-Channel
HDMI: 8-Channel

Audio

1 x 1/8" / 3.5 mm Mic/Line Input
1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

None

Power

1 x D-Tap Input

Other I/O

1 x LANC (2.5 mm)

Wi-Fi

None

Video Format

HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/60/50/30/25/24
1080i: 60/50
720p: 60/50

Gamma Curve

Rec709

Video Signal Conversion

HDMI to SDI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/100/60/50/30/25/24
1080i: 60/50
720p: 60/50

Pulldown Conversion

2:2, 3:2

Camera Trigger

HDMI

Pre-Roll Record

4K: 2 Seconds
Full HD: 8 Seconds

Encoding Formats

Up to 4097 x 2160
ProRes 422, HQ, LT, Raw, Raw HQ 8/10-Bit
DNxHR HQ, HQX, LB, SQ 8/10-Bit

Maximum Audio Tracks

12

Metadata Tagging

10

DC Input Power

6.2 to 16.8 VDC

Battery Type

1 x L-Series

Power Consumption

10 W (Typical)
22 W (Maximum)

Mounting

2 x 3/8"-16 Female

Operating Temperature

104°F / 40°C

Material of Construction

Aluminum, Polycarbonate

Dimensions

5.9 x 3.6 x 1.2" / 151 x 91.5 x 31.5 mm

Weight

12.7 oz / 360 g

Warranty Length

Limited 1-Year Warranty

Package Weight

2.385 lb

Box Dimensions (LxWxH)

7.85 x 5.8 x 4.15"

Mount / Series Type

Sony L-Series

Chemistry

Lithium-Ion

Amp-Hours

5200 mAh

Package Weight

1.865 lb

Box Dimensions (LxWxH)

6.9 x 4.4 x 3.8"
