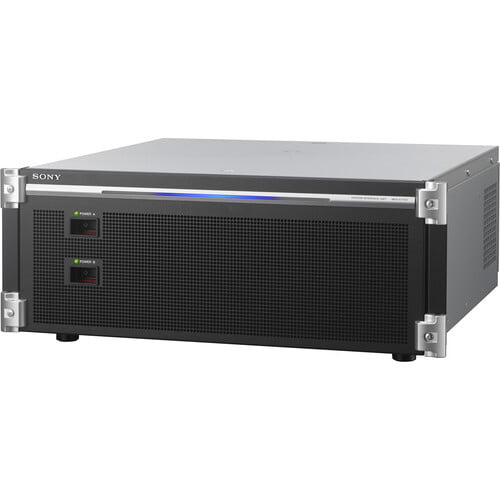

Sony MKS-X7700 System Interface Unit for ICP-X7000 Control Panel
The Sony MKS-X7700 System Interface Unit is used in the ICP-X7000 Control Panel. It features serial tally and tally/GPI interfaces, along with a remote interface that supports various protocols. It also features six additional slots for adding more Tally/GPI outputs and serial remote interfaces.
Specification
Connections
LAN | 1 x RJ45, 1000BASE-T (MVS LAN) |
Tally | Serial: 2 x 9-Pin D-Sub, RS-422A |
TALLY/GPI | 2 x 37-Pin D-Sub, TTL level inputs (34 each) |
Remote | 4 x 9-Pin D-Sub, RS-422A, various protocols |
Bus | 1 x BNC, S-Bus protocol |
Optional | Additional MKS-X7701 tally/GPI outputs and MKS-X7702 serial remote connection interface boards (a mixed configuration of four optional boards is available for six slots) |
Power
Power Requirement | 100 to 240 VAC ±10%, 50/60 Hz (power cord not included) |
Power Consumption | 0.5 to 1 A |
Inrush Current | Maximum 90 A (at peak) / 20 A rms (240 VAC) |
General
Operating Temperature | 41 to 104°F (5 to 40°C) |
Storage Temperature | -4 to 140°F (-20 to 60°C) |
Operating Humidity | 10 to 90% Non-condensing |
Dimensions (W x H x D) | 19.0 x 7.0 x 19.3" (482 x 176 x 486 mm) |
Weight | 33.1 lb (15 kg) Fully loaded |
