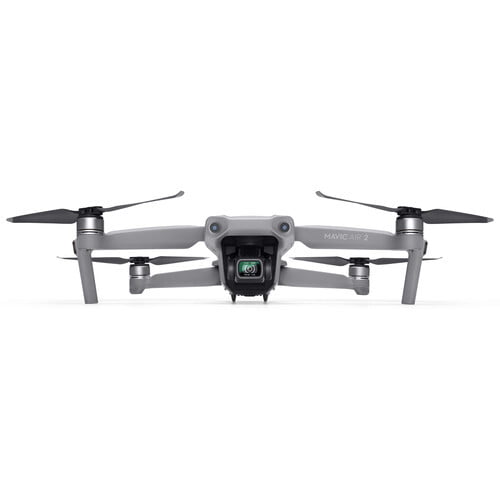

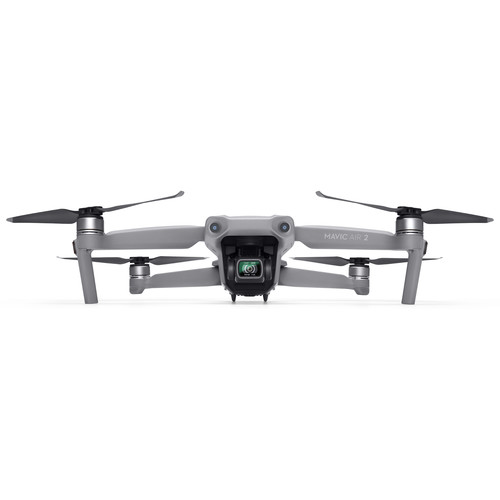

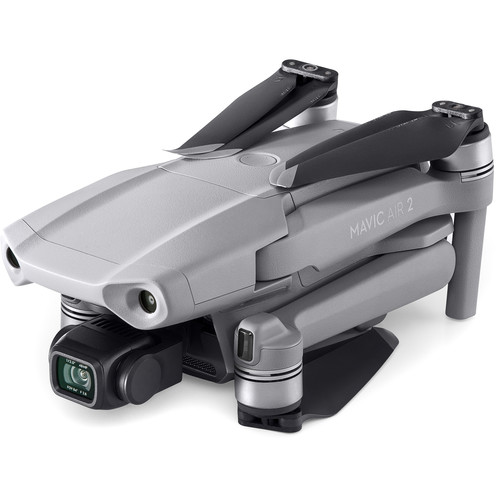

DJI Mavic Air 2

Aircraft

• Weight
• 570 g

• Size
• Folded:
  180×97×84 mm (Length×Width×Height)
  Unfolded:
  183×253×77 mm (Length×Width×Height)

• Diagonal Distance
• 302 mm

• Max Ascent Speed
• 4 m/s (S Mode)
  4 m/s (N Mode)

• Max Descent Speed
• 3 m/s (S Mode)
  3 m/s (N Mode)
  5 m/s (S Mode and N Mode during a sharp descent)
  3 m/s (all modes at elevations over 4500 m)

• Max Service Ceiling Above Sea Level
• 5000 m

• Max Flight Time (without wind)
• 34 minutes

• Max Hover Time (without wind)
• 33 minutes

• Max Flight Distance
• 18.5 km

• Max Horizontal Flight Speed
• 19 m/s (S Mode)
  12 m/s (N Mode)
  5 m/s (T Mode)

• Max Wind Resistance
• 8.5-10.5 m/s (Level 5)

• Max Tilt Angle
• 35° (S Mode)
  20° (N Mode)
  35° (N Mode under strong wind)

• Max Angular Velocity
• 250°/s (S Mode)
  250°/s (N Mode)

• Operating Temperature Range
• -10° to 40°C (14° to 104°F)

• Operating Frequency
• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Transmitter Power (EIRP)
• 2.400-2.4835 GHz:
  FCC: ≤26 dBm
  CE: ≤20 dBm
  SRRC: ≤20 dBm
  MIC: ≤20 dBm

  5.725-5.850 GHz:
  FCC: ≤26 dBm
  CE: ≤14 dBm
  SRRC: ≤26 dBm

• Hovering Accuracy Range
• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GPS positioning)

  Horizontal:
  ±0.1 m (with vision positioning)
  ±1.5 m (with GPS positioning)

• Propellers
• Quick release, low noise, folding

• Satellite Systems
• GPS+GLONASS

• Compass
• Single Compass

• IMU
• Single IMU

• Internal Storage
• 8 GB

Battery

• Capacity
• 3500 mAh

• Voltage
• 11.55 V

• Charging Voltage Limit
• 13.2 V

• Battery Type
• LiPo 3S

• Energy
• 40.42 Wh

• Weight
• 198 g

• Charging Temperature
• 5° to 40°C (41° to 104°F)

• Max Charging Power
• 38 W

Camera

• Sensor
• 1/2" CMOS
  Effective Pixels: 12 MP and 48 MP

• Lens
• FOV: 84°
  Equivalent Focal Length: 24 mm
  Aperture: f/2.8
  Focus Range: 1 m to ∞

• ISO
• Video:
  100-6400

  Photo (12 MP):
  100-3200 (Auto)
  100-6400 (Manual)
  Photo (48 MP):
  100-1600 (Auto)
  100-3200 (Manual)

• Max Photo Resolution
• 48 MP 8000×6000 pixel

• Photo Modes
• Single: 12 MP and 48 MP
  Burst: 12 MP, 3/5/7 frames
  Automatic Exposure Bracketing (AEB): 12MP, 3/5 Frames at 0.7EV Bias
  Timed: 12 MP 2/3/5/7/10/15/20/30/60 seconds
  SmartPhoto: Scene Recognition, HyperLight, and HDR
  HDR Panorama^[1]:
  Vertical (3×1): 3328×8000 pixels (Width×Height)
  Wide-angle (3×3): 8000×6144 pixels (Width×Height)
  180° Panorama (3×7): 8192×3500 pixels (Width×Height)
  Sphere (3×8+1): 8192×4096 pixels (Width×Height)

• Photo Formats
• JPEG/DNG (RAW)

• Video Resolution and Frame Rates
• 4K Ultra HD: 3840×2160 24/25/30/48/50/60 fps
  2.7K: 2688×1512 24/25/30/48/50/60 fps
  FHD: 1920×1080 24/25/30/48/50/60/120/240 fps
  4K Ultra HD HDR: 3840×2160 24/25/30 fps
  2.7K HDR: 2688×1512 24/25/30 fps
  FHD HDR: 1920×1080 24/25/30 fps

• Color Profiles
• D-Cinelike, Normal

• Video Formats
• MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)

• Max Bitrate
• 120 Mbps

• Supported SD Cards
• Supports a microSD with capacity of up to 256 GB

• Supported File Systems
• FAT32 and exFAT

• Zoom
• Available

Gimbal

• Stabilization
• 3-axis (tilt, roll, pan)

• Mechanical Range
• Tilt: -135° to 45°
  Roll: -45° to 45°
  Pan: -100° to 100°

• Controllable Range
• Tilt: -90° to 0° (Default)
  -90° to 24° (Extended)

• Max Controllable Speed (tilt)
• 100°/s

• Angular Vibration Range
• ±0.01°

Vision System

• Forward
• Precision Measurement Range: 0.35-22.0 m
  Detection Range: 0.35 to 44 m
  Effective Sensing Speed: 12 m/s
  Field of View (FOV):
  71° (horizontal), 56° (vertical)

• Backward
• Precision Measurement Range: 0.37-23.6 m
  Detection Range: 0.37-47.2 m
  Effective Sensing Speed: 12 m/s
  Field of View (FOV):
  57° (horizontal), 44° (vertical)

• Available Downward Sensors
• Dual Vision Sensors + Time of Flight Sensors (ToF)

• Downward
• ToF Measurement Range: 0.1-8 m
  Hovering Range: 0.5-30 m
  Vision Sensor Hovering Range: 0.5-60 m

• Left/Right
• None

• Downward Auxillary Light
• Single LED

Safety

• Obstacle Avoidance System
• Advanced Pilot Assistance Systems (APAS) 3.0

Video Transmission

• Transmission System
• OcuSync 2.0
  2.4 GHz/5.8 GHz Auto-Switching

• Max Transmission Distance
• 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

• Live View Quality
• 720p@30fps/1080@p30fps

• Latency (depending on environmental conditions and mobile device)
• 120-130 ms

• Video Transmission Encoding format
• H.265/H.264 (Auto-switches depending on encoding capabilities of device)

• Max Transmission Bitrate
• 12 Mbps

• Operating Frequency
• 2.400-2.4835 GHz
  5.725-5.850 GHz

Remote Controller

• Remote Controller Transmission System
• When used with different aircraft hardware configurations, DJI RC-N1 Remote Controllers will automatically select the corresponding firmware version for updating and support the following transmission technologies enabled by the hardware performance of the linked aircraft models:
  a. DJI Mini 2/ DJI Mavic Air 2: O2
  b. DJI Air 2S: O3
  c. DJI Mavic 3: O3+

• Supported Mobile Device Connectors
• Lightning, Micro USB, USB Type-C

• Max. Supported Mobile Device Size
• 180×86×10 mm (Height×Width×Thickness)

• Operating Temperature
• -10° to 40°C (14° to 104°F)

• Transmitter Power (EIRP)
• 2.400-2.4835 GHz:
  <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  5.725-5.850 GHz:
  <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)

• Operating Current/Voltage
• 1200 mA@3.6V (Android)
  700 mA@ 3.6 V (iOS)

Charger

• Charging Input
• 100-240 V, 50/60 Hz, 1.3 A

• Charging Output
• Charging Port: 13.2 V⎓2.82 A
  USB Port: 5 V⎓2 A

• Voltage
• 13.2 V

• Rated Power
• 38 W

SD Cards

• Supported SD Cards
• Micro SD™
  Supports a microSD card with a capacity of up to 256 GB.
  A UHS-I Speed Grade 3 rating microSD card is required.

• Recommended microSD Cards
• SanDisk Extreme PRO 64GB V30 A2 microSDXC
  SanDisk High Endurance 64GB V30 microSDXC
  SanDisk Extreme 64GB V30 A2 microSDXC
  SanDisk Extreme 128GB V30 A2 microSDXC
  SanDisk Extreme 256GB V30 A2 microSDXC
  Lexar Lexar 667x 64GB V30 A2 microSDXC
  Lexar High-Endurance 64GB V30 microSDXC
  Samsung EVO 64GB microSDXC
  Samsung EVO Plus 64GB microSDXC
  Samsung EVO Plus 256GB microSDXC
  Kingston 128GB V30 microSDXC
  Netac 256GB A1 microSDXC
