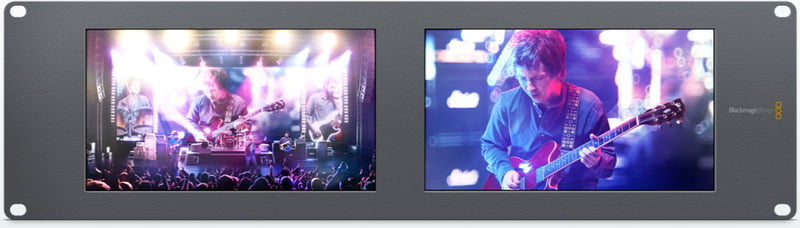

Blackmagic Design SmartView Duo Rack mountable Dual 8" LCD Monitors
Blackmagic Design's SmartView Duo comprises a pair of side-by-side 8" LCD monitors – both with an auto-selecting 3G/HD/SD-SDI input – that are housed in a 3 RU-high, rackmountable form factor.
Specification
Display
Panel Type | TFT LCD |
Display Size | 8.0" / 20.3 cm |
Screen Resolution | 800 x 480 |
Contrast Ratio | 500:1 |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
Response Time | 15 ms |
I/O
Video | 2 x BNC (3G-SDI) Output |
Audio | None |
Built-In Speaker | None |
Other I/O | 1 x USB 2.0 (USB Type-B) |
Card Slot | None |
Format Support
Video Format | SDI (4:4:4) |
Power
DC Input Power | 12 to 15 VDC |
Battery Type | None |
Power Consumption | 20 W (Maximum) |
Mounting
Rack Form Factor | 3 RU |
General
Dimensions | 19 x 5.24 x 1.38" / 48.3 x 13.3 x 2.5 cm |
