Sennheiser EW 122P G4-E
$700.00
Tags:

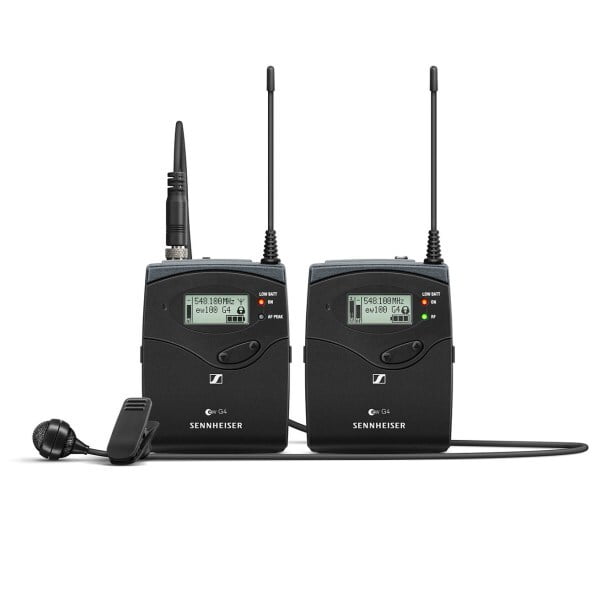

The ew 122P G4 is an all-in-one wireless system consisting of the EK 100 G4 camera receiver, SK 100 G4 bodypack transmitter and ME 4 clip-on microphone. The set offers excellent broadcast sound and is particularly suitable for documentary, mobile journalism or broadcast applications.
Product Details
SPECIFICATION
- Frequency range
- A: 516 - 558 MHzA1: 470 - 516 MHzAS: 520 - 558 MHzB: 626 - 668 MHzC: 734 - 776 MHzD: 780 - 822 MHzE: 823 - 865 MHzG: 566 - 608 MHzGB: 606 - 648 MHzJB: 806 - 810 MHzK+: 925 - 937,5 MHz
- Dimensions
- Approx. 82 x 64 x 24 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Weight
- (incl. batteries) approx. 160 g
- Audio output
- 3.5 mm jack socket: +12 dBu (mono, unbalanced)
- Signal-to-noise ratio
- ≥ 110 dBA
- Switching bandwidth
- up to 42 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Operating time
- Typically 8 h
- Modulation
- Wideband FM
- Power supply
- 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption
- at nominal voltage: typ. 180 mAwith receiver switched off: ≤ 25 µA
- Adjacent channel rejection
- ≥ 65 dB
- Intermodulation attenuation
- ≥ 65 dB
- Powering
- 3 V battery / 2.4 V rechargeable battery
- Receiving frequency
- Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity
- < 1.6 μV for 52 dBA eff S/N
- Squelch
- low: 5 dBµV middle: 15 dBµV high: 25 dBμV
- Temperature Range
- -10 °C to +55 °C
- Receiver Principle
- Adaptive diversity
- Blocking
- ≥ 70 dB
SK 100 G4
- Dimensions
- Approx. 82 x 64 x 24 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Weight
- (incl. batteries) approx. 160 g
- Signal-to-noise ratio
- ≥ 110 dBA
- RF output power
- Max. 30 mW
- Switching bandwidth
- up to 42 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Operating time
- Typically 8 h
- Modulation
- Wideband FM
- Power supply
- 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption
- at nominal voltage: typ. 180 mAwith transmitter switched off: ≤ 25 µA
- Input impedance
- 40 kΩ, unbalanced / 1 MΩ
- Max. Input voltage
- 3 Veff
- Powering
- 3 V battery / 2.4 V rechargeable battery
- Transmission frequency
- Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF frequency response
- Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
- Temperature Range
- -10 °C to +55 °C
- Frequency stability
- ≤ ±15 ppm
ME 4
- Connector
- 3.5 mm jack
- Frequency response
- 50 to 18,000 Hz
- Max. sound pressure level
- 120 dB
- Cable length
- approx. 1.60 m
- Transducer principle
- pre-polarized condensor microphone
- Pick-up pattern
- cardioid
- Sensitivity in free field, no load (1kHz)
- 40 mV/Pa
- Equivalent noise level
- 31 dB
