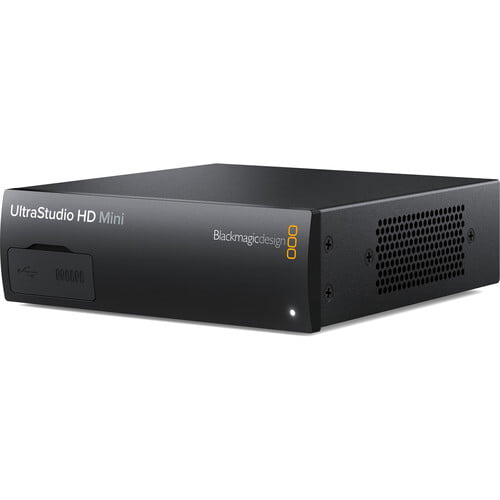

Blackmagic Design UltraStudio HD Mini Thunderbolt 3 capture and playback (TB3 USB-C cable not incl)
The UltraStudio HD Mini can send and receive SD and HD video up to 1080p at 60 fps with up to 16 channels of embedded audio. Available outputs include dual SDI for fill and key, as well as an HDMI output for driving consumer displays.
SPECIFICATION
Host Connection | USB Type-C (Thunderbolt 3) |
Input
Video Input Connectors | 1 x BNC (3G-SDI) Female |
Input Video Format | SDI (4:4:4/4:2:2) |
Audio Input Connectors | 2 x 1/4" Balanced TS Analog Female |
Embedded Audio Input | SDI: 16-Channel |
Output
Video Output Connectors | 2 x BNC (3G-SDI) Female |
Output Video Format | HDMI (8-Bit 4:4:4 RGB) |
Embedded Audio Output | SDI: 16-Channel |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M-A/425M-B |
Connectivity
Other I/O | 1 x DE-9/DB-9 RS-422 Input |
Hardware
OS Compatibility | Windows 7 or Later |
Power
Power Connector | None |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General
Dimensions | 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm |
Weight | 1.34 lb / 608 g |
Warranty Length | Limited 3-Year Warranty |
