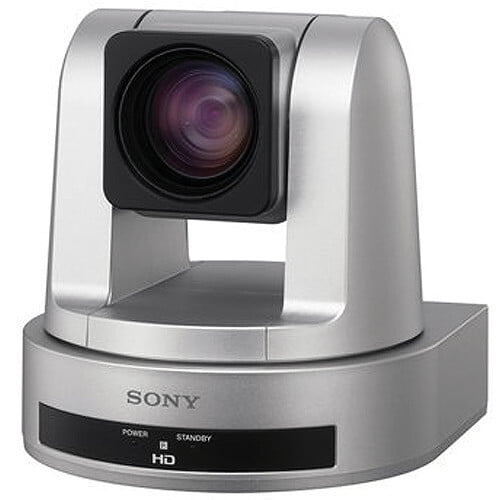

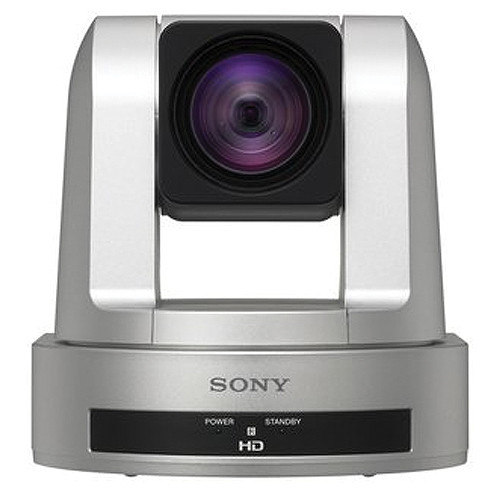

Sony SRG-120DH PTZ Desktop Camera with 12x Optical Zoom (Silver Housing)

Image Sensor

1-Chip 1/2.8" CMOS Sensor

Effective Sensor Resolution

1920 x 1080 (2.1 MP)

Gain

0 to 43 dB

Signal-to-Noise Ratio

50 dB

Minimum Illumination

1.8 Lux

Shutter Speed

1/1 to 1/10,000 sec

Max Digital Zoom

12x

Optical Zoom Ratio

12x

Focal Length

3.9 to 46.8mm

Field of View

71°

Maximum Aperture

f/1.8 to 2

Minimum Focusing Distance

Wide: 0.4" / 1.0 cm
Telephoto: 59.1" / 150.0 cm

Focus Control

Autofocus
Manual Focus

Output Formats

HDMI: 1920 x 1080p at 25, 29.97, 50, 59.94 fps
1920 x 1080i at 50, 59.94 fps
1280 x 720p at 25, 29.97, 50, 59.94 fps

Presets

16 via IR, RS-232

Move Speed

Pan: 300°/sec
Tilt: 126°/sec

Movement Range

Pan: 200° (-100 to 100°)
Tilt: 50° (-25 to 25°)

Supported Control Protocols

IP
RS-232
VISCA

Video Output Connectors

1 x HDMI Type A Female

Control Interface

1 x RJ45 (IP Control) Input
1 x 8-Pin Mini-DIN (RS-232, VISCA) Input
1 x 8-Pin Mini-DIN (RS-232, VISCA) Output

PoE Support

None

Power Connectors

1 x JEITA (12 VDC)

Power Consumption

Device: 10.8 to 13.2 VDC16.8 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions

6.14 x 6.02 x 6.02" / 156 x 153 x 153 mm

Weight

3.2 lb / 1.45 kg

Package Weight

5.11 lb

Box Dimensions (LxWxH)

10.4 x 10.15 x 9.25"
