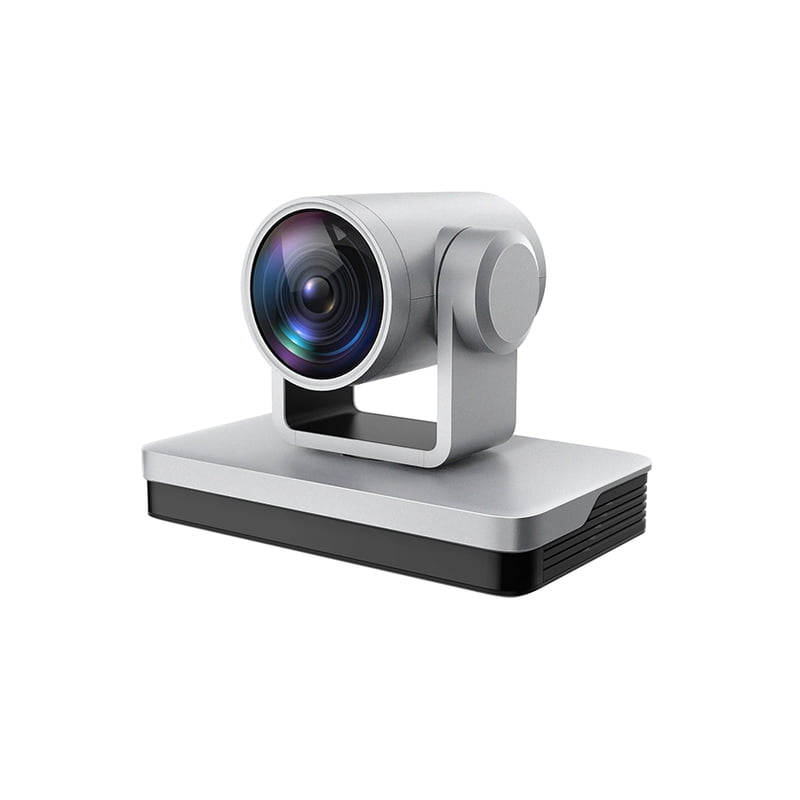

Minrray UV430 Ultra HD 4K PTZ Camera – UV430
The UV430A 4K Ultra HD NDI PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition.
Customize
Available Offer
Share :
Model Number | UV430A |
Camera/ Lens Parameters | |
Image Sensor | 1/2.5 Inch SONY High Quality 4K CMOS Sensor |
Effective pixels | 8.51MP effective pixels, 16:9 |
Video Format | HDMI video output format： 4KP@60fps,4KP@50fps,4KP@30fps,4KP@25fps,1080P@60fps,1080P@50fps,1080I@60fps,1080I@50fps,1080P@30fps,1080P@25fps,720P@60fps,720P@50fps； USB3.0 video output format： YUY2/NV12:1920×1080P30fps,1280×720P30fps,1024×576P30fps, 960×540P30fps,800×448P30fps,640×360P30fps,640×480P30fps,320×176P30fps MJPEG/H.264:3840×2160P30fps,1920×1080P30fps,1280×720P30fps,1024×576P30fps,960×540P30fps,800×448P30fps,640×360P30fps,640×480P30fps,320×176P30fps USB2.0 video output from USB3.0 YUY2/NV12:640×360P30fps,640×480P30fps,320×176P30fps MJPEG/H.264:3840×2160P30fps,1920×1080P30fps,1280×720P30fps,1024×576P30fps,960×540P30fps,800×448P30fps,640×360P30fps,640×480P30fps,320×176P30fps |
Optical Zoom | 12X |
View Angle | Horizontal: 7.59°（tele）～80.4°（wide） Tilt:4.6°（tele）～50.0°（wide） |
Focus | f=3.85 mm～ 43.06 mm ±5% |
Aperture | F1.8 ～ F3.56±5% |
Minimum Illumination | 0.05Lux(F1.8, AGC ON) |
DNR | 2D &3D DNR |
White Balance | Auto / Manual/ One Push/ Specified color temperature |
Focus | Auto / Manual/ One Push |
Exposure mode | Auto / Manual / Shutter Priority / Iris Priority / Whiteness Priority |
Iris | F1.8 ～ F11、CLOSE |
Shutter Speed | 1/25～1/10000 |
Dynamic range | OFF/ Dynamic level adjustment |
BLC | ON/ OFF |
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
DNR | ≥50dB |
Function of Interface | |
Interfaces | HDMI , LAN (POE),USB3.0 Interface (type B, compatible with USB2.0), A-in RS232(in & out), RS422( work with RS485), Rotary dial switch, DC12V, power on |
Image Code Stream | Dual Streaming |
Video Compression Format | LAN:,H.264, H.265 USB3.0: MGPG, H.264, YUY2, NV12 |
Audio Input Interface | A-IN, Double track 3.5mm linear Input |
Audio output interface | HDMI, LAN(POE), USB3.0 |
Audio Compression Format | AAC/ MP3/ G.711A |
Lan Interface | 10m/100/1000M adaptive Ethernet port, support POE and audio/video output |
Network Protocol | Support RTSP, RTMP, ONVIF, GB/T28181, NDI(Optional),VISCA Control Protocols onver Network. Support remote upgrade, reboot and reset |
Control Interface | RS232(in & out), RS422( work with RS485) |
Serial communication protocol | VISCA/Pelco-D/Pelco-P, support baud rate 115200/38400/9600/4800/2400 |
USB Communication Protocl | UVC（video),UAC（audio） |
Power Interface | HEC3800 (DC12V) |
Power Adaptor | Input: AC110V-AC220V Output: DC12V/1.5A |
Input Voltage | DC12V±10% |
Input Current | 1.5A |
Power Consumption | <12W |
PTZ Parameters | |
Pan Rotation | -110° ~ +110° |
Tilt Rotation | -30°- +30° |
Pan Control Speed | 0.1- 100°/sec |
Tilt Control Speed | 0.1-70°/sec |
Preset Speed | Pan: 100°/SEC, Tile: 70°/SEC |
Preset Number | 255 Points Preset (10 presets by remote controller) |
Other Parameters | |
Store Temperature | -10℃～+60℃ |
Store Humidity | 20%-95% |
Working Temperature | -10℃-+50℃ |
Working Humidity | 20%-80% |
Dimension(L * W * H) | 220mm×144mm×159mm |
Weight | 1.7kg |
Usage | Indoor only |
Accessories | |
Random Accessories | power supply,RS232 control cable, USB3.0 cable ,remoter, manual, warranty card |
Selected Accessories | In-ceiling mount bracket or wall mount bracket |
