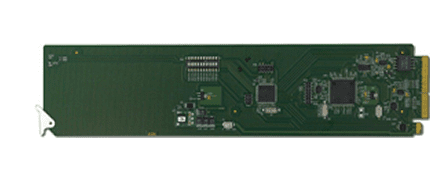

Ross Video ADC-8434-A Quad Analog Audio to Dual AES Converter
Non-returnable
$1,000.00
Tags:
Quad Analog Audio to Dual AES Converter
4 channels of analog audio to dual AES / EBU conversion with up to 24-bit ADC resolution.
The ADC-8434-A quad analog audio to dual AES converter is a broadcast quality, modular solution, which converts 4 analog audio channels to 2, 24-bit, unbalanced AES3 signals. The ADC-8434-A accepts 4 analog audio signals (2 stereo pairs) and provides 2 copies of each of the 2 AES / EBU output signals.
4 channels of analog audio to dual AES / EBU conversion with up to 24-bit ADC resolution.
The ADC-8434-A quad analog audio to dual AES converter is a broadcast quality, modular solution, which converts 4 analog audio channels to 2, 24-bit, unbalanced AES3 signals. The ADC-8434-A accepts 4 analog audio signals (2 stereo pairs) and provides 2 copies of each of the 2 AES / EBU output signals.
Key Features
- 4 channels of audio conversion
- Can synchronize to 1 of the 2 frame reference inputs, Digital Audio Reference Signal (DARS) audio reference
- signal or a video black reference signal
- Supports audio sampling frequencies from 32kHz to 96kHz
- Internal clock generates audio sampling frequencies of 48kHz
- 24-bit technology provides the highest quality signal conversion
- 75? unbalanced AES3 output
- Internal audio signal processing
- Provides level control of output signals
- 5-year transferable warranty
- Power: 4 watts
Product Details
- Quad Analog Audio to Dual AES Converter
- 4 channels of analog audio to dual AES / EBU conversion with up to 24-bit ADC resolution
- Quad analog audio to dual AES converter
- Converts 4 analog audio channels to 2, 24-bit, unbalanced AES3 signals
- Accepts 4 analog audio signals (2 stereo pairs)
- Provides 2 copies of each of the 2 AES / EBU output signals
- Internal audio processing with independent channel gain, master stereo gain, sum (mono), and left or right only selection
- Conversion from analog to digital performed with 24-bit precision
- Sampling rates of 32kHz to 96kHz with AES (DARS) reference, video Black reference, or 48kHz internal reference
- AES output frequency 32kHz to 96kHz
- 4 channels of audio conversion
- Can synchronize to 1 of the 2 frame reference inputs, Digital Audio Reference Signal (DARS) audio reference signal or a video Black reference signal
- Provides level control of output signals
- Power: 4 watts
