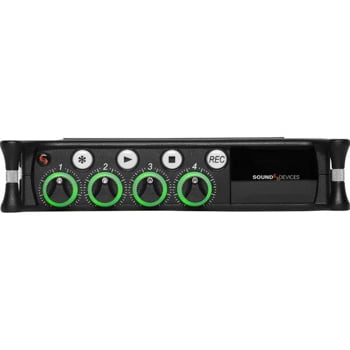

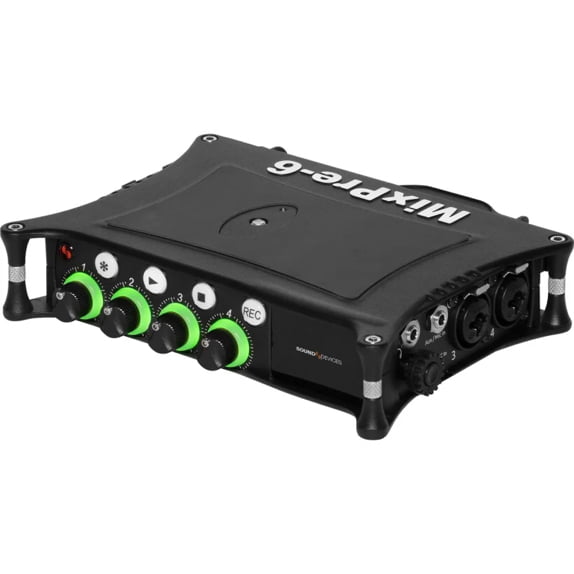

Sound Devices MixPre-6 II 6-Channel / 8-Track Multitrack 32-Bit Field Recorder

Number of Tracks

WAV:
8 (6 Inputs + Stereo Mix)

Max Sample Rate/Resolution

192 kHz / 32-Bit

Microphone

None

Built-In Speaker

None

Display

1.6" / 40.64 mm Color LCD Touchscreen

Memory Card Support

SD, SDHC, SDXC (Up to 512 GB)

Internal Storage

None

Audio File Formats

Recording:
WAV

Sample Rates

WAV:
44.1 / 47.952 / 48 / 48.048 / 96 / 192 kHz

Bit Depth

16 / 24 / 32-Bit (A/D Conversion)

Signal Processing

Delay, Limiter, Low-Cut Filter

Timecode

Yes

Frame Rates Supported

23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF

Clock Accuracy

±2 ppm / 0.5 Frame per 24 Hrs (Timecode)

Analog I/O

4 x Combo XLR-1/4" 3-Pin Female Balanced Line/Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Aux Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output

Digital I/O

1 x 1/8" / 3.5 mm SMPTE Timecode Input
1 x 1/8" / 3.5 mm SMPTE Timecode Output
1 x HDMI Type-D SMPTE Timecode Input

Phantom Power

+48 V, Selectable On/Off

Phantom Power Current

10 mA per Channel

Plug-In Power

Yes, 3 V

Host Connection

1 x USB Type-C (USB 2.0)
1 x USB Type-A (Control, Text Entry, Thumb Drive, USB 2.0)

Bluetooth

Bluetooth 4.0 (Remote)

Frequency Response

WAV:
10 Hz to 80 kHz ±0.5 dB (At 192 kHz)

Gain Range

Mic Inputs:
+6 dB to +76 dB
Line Inputs:
-20 dB to +30 dB
Mic/Aux Inputs:
+10 dB to +40 dB
Line/Aux Inputs:
-10 dB to +20 dB
Fader:
Up to +20 dB
Headphone Outputs:
Up to +20 dB

Max Input Level

Mic Inputs:
+14 dBu
Line Inputs:
+28 dBu
Mic/Aux Inputs:
-10 dBu
Line/Aux Inputs:
+10 dBu

Max Output Level

Outputs:
+7.8 dBu

Headphone Output Power

300 mW per Channel

Dynamic Range

A/D Converters:
142 dB
D/A Converters:
115 dB

Impedance

Mic Inputs:
4 Kilohms (Active-Balanced)
Line Inputs:
4 Kilohms (Active-Balanced)
Mic/Aux Inputs:
100 Kilohms (Unbalanced)
Timecode Input:
20 Kilohms
Timecode Output:
1 Kilohms

THD+N

Inputs:
0.005%

EIN

-128 dBu (A-Weighted)

Power Options

Batteries, USB Bus Power, AC/DC Power Adapter

Battery Type

4 x AA (Included)
2 x L Series (Requires Optional Equipment, Hot-Swappable, Not Included)

AC/DC Power Adapter

5 VDC (Included)

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Input Power

VAC50 / 60 Hz

Mounting Options

1/4"-20 Male (Top)
1/4"-20 Female (Bottom)

Operating Temperature

-4 to 86°F / -20 to 30°C

Storage Temperature

-40 to 185°F / -40 to 85°C

Operating Humidity

0 to 90%

Dimensions

6.5 x 1.4 x 4.6" / 166 x 36 x 118 mm

Weight

19.9 oz / 0.6 kg (Without Batteries)

Package Weight

2.81 lb

Box Dimensions (LxWxH)

10.25 x 7.4 x 4.25"
