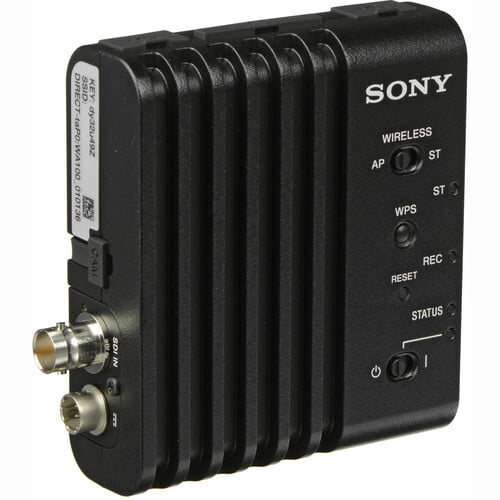

Sony CBK-WA100 Wireless LAN / Modem Adapter with SDI
The Sony CBK-WA100 Wireless LAN / Modem Adapter with SDI Input & Wi-Fi Dongle for XDCAM allows you to wirelessly transmit XAVC proxy files from cameras back to the station or to the cloud via an included USB Wi-Fi dongle and/or optional 3G/4G/LTE modem.
Specification
Proxy Video Format | XAVC Proxy (AVC/H.264 Main Profile, 4:2:0 Long GOP) |
Proxy Audio Format | AAC-LC, 2-Ch, 128 kbps for stereo |
HD-SDI Input | 1x BNC |
DC Input | 4-pin Hirose male |
USB Connection | 1x USB mini Type B for camera connection |
Recording Media | 1x SD card slot supporting SDHC cards (Class 4 or higher) with up to 32 GB capacity (SDXC cards are not compatible) |
Power Consumption | 4.5 W (exclusive of external USB devices) |
Power Requirements | 12 V DC |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Dimensions | 3.3 x 3.7 x 1.2" (8.4 x 9.5 x 3 cm) |
Weight | 0.5 lb (220 g) |
Packaging Info
Package Weight | 2 lb |
Box Dimensions (LxWxH) | 7.717 x 6.299 x 6.142" |
