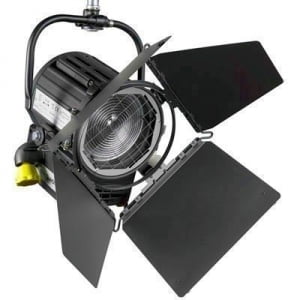

Bambino 2K Fresnel (USED)

Operational Data

Power consumption

2000 W

Supply voltage

120 – 240 V

Tilt adjustment

Pivot located at centre of gravity for excellent balance and positive locking

Tilt recommended angle of use

-90° / 0° / 90°

Focus adjustment

Stainless steel, maintenance-free wire focus mechanism with a wire and pulley push/pull carriage travel system

Side mounted pole operated focus mechanism

Accessory fitting

Spring loaded top hinged bracket

Lower accessory support bracket fitted with barndoor safety catch (extra safety)

Barndoor diameter

270 mm

Colour frame/scrim set diameter

260 mm

Filter cut size diameter

255 mm

Lamp holder

G38

Safety mesh

Stainless steel safety mesh 25 mm x 25 mm

IP rating

IP 20

Max operating ambient temperature

45°

Optical Data

Lens

Fresnel 175 mm Ø, low expansion borosilicate Fresnel lens on spring Teflon supports

Reflector

Spherical specular reflector in bimetallic aluminium (99.99 / 99.95 %) with special anodised coating for high-efficiency finish

Beam Angle

12.3° to 60.7°

Mechanical Data

Finish

High-quality epoxy powder coating

Special extra high-temperature treatment in critical areas

External textured low gloss finish

MO mounting

Manual U-shaped stirrup with lateral thrust bearing and lock off knob for quick and secure locking, 28 mm (1 1/8”)

PO mounting

Pole Operated U-shaped stirrup, pan & tilt clutch gear mechanism for manual override, 28 mm (1 1/8") spigot

Electrical

MO version

On/Off head mounted toggle switch 10 A / 250 V, 5 m bare ended cable, 3 x 2.5 mm² section cable

Plugs and cables upon request

PO version

On/Off head mounted toggle switch 10 A / 250 V, 2 m bare ended cable, 3 x 2.5 mm² section cable

Plugs and cables upon request

Dimensions

Weight (head + stirrup)

8.3 kg manual version

8.9 kg pole op version

Packed volume

520 mm x 420 mm x 525 mm
