Canon CR-N300(BK)(EU/OTH)
$3,892.06
Tags:

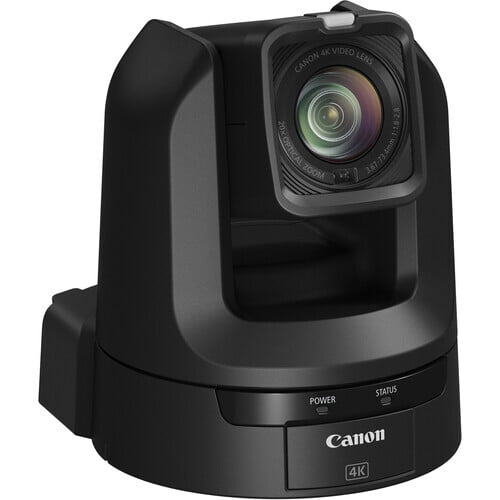

The CR-N300 PTZ produces incredible 4K and HD image quality with the combination of a 1/2.3" CMOS sensor and the DIGIC DV 6 image processor. This camera incorporates a Canon 4K lens that exhibits a 20x optical zoom ratio that maintains a high level of precision throughout the zoom range.
Product Details
SPECIFICATION
Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Total pixels: approx. 21.14 megapixels
Effective pixels: approx. 8.29 megapixels (3840 x 2160)
f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
35mm equivalent focal length:
[4K UHD] approx. 29.3 (W) – 601 mm (T)
[Full HD] approx. 30.5 (W) – 627 mm (T)
1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.)
throughout the zoom range
[4K UHD]
Horizontal: 65.6 (W) – 3.6° (T)
Vertical: 39.8° (W) – 2.0° (T)
[Full HD]
Horizontal: 63.5 (W) – 3.4° (T)
Vertical: 38.4° (W) – 1.9° (T)
1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Manual/Automatic aperture
0.0 dB – 36 dB
AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual
*Color temperatures are given for reference purposes only.
Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
Normal1 (Standard), Normal3 (BT.709)
Optical-shift
Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
Pan operation range: Horizontal ±170°
Pan operation speed: 0.2° – 300°/sec.
Tilt operation range: Vertical -30° – +100°
Tilt operation speed: 0.2° – 170°/sec.
Color
Satin black/Titanium white
Image Sensor
Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Total pixels: approx. 21.14 megapixels
Effective pixels: approx. 8.29 megapixels (3840 x 2160)
Lens
f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
35mm equivalent focal length:
[4K UHD] approx. 29.3 (W) – 601 mm (T)
[Full HD] approx. 30.5 (W) – 627 mm (T)
Zoom
Digital: 20x
Optical: 20x
Optical: 20x
Lens Configuration
12 elements in 10 groups (including 2 aspheric elements)
Minimum Focusing Distance
1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.)
throughout the zoom range
Angle of View
[4K UHD]
Horizontal: 65.6 (W) – 3.6° (T)
Vertical: 39.8° (W) – 2.0° (T)
[Full HD]
Horizontal: 63.5 (W) – 3.4° (T)
Vertical: 38.4° (W) – 1.9° (T)
Shutter Speed
1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris
Manual/Automatic aperture
Gain
0.0 dB – 36 dB
White Balance
AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual
*Color temperatures are given for reference purposes only.
Focus
Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
Gamma
Normal1 (Standard), Normal3 (BT.709)
Image Stabilizer
Optical-shift
Min. Subject Illumination
Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
Pan and Tilt
Pan operation range: Horizontal ±170°
Pan operation speed: 0.2° – 300°/sec.
Tilt operation range: Vertical -30° – +100°
Tilt operation speed: 0.2° – 170°/sec.
