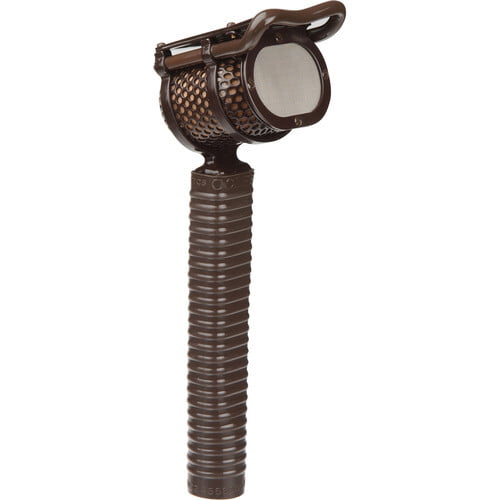

Coles Microphones 4104B Lip Microphone
The Coles 4104B Lip Microphone is a ribbon microphone designed for commentary and speech capturing in noisy environments. A sensitive ribbon transducer is combined with a directional polar pattern and flat, low-cut frequency response at 16 Hz. The result is accurate signal reproduction without noise caused by ambiance or proximity effect.
Specification
Transducer | Ribbon microphone |
Polar Pattern | Cardioid |
Frequency Response | 60 Hz to 12 kHz |
Dynamic Range (Typical) | Not specified by manufacturer |
Signal-to-Noise Ratio | Distortion less than 1% at an SPL of 120 dB |
Maximum Input Sound Level | Not specified by manufacturer |
Power Requirements | Ribbon transducer—no external power required |
Output Impedance | 300 Ohms |
Output Connectors | 3-pin XLR male |
Pad | No |
Low Frequency Roll-Off | Low frequency roll-off at 16 Hz |
Dimensions (L x W x D) | 7.9 x 2.2 x 3.0" (20.1 x 5.6 x 7.6 mm) |
Weight | 10 oz (283 g) |
Packaging Info
Package Weight | 1.45 lb |
Box Dimensions (LxWxH) | 9 x 8.1 x 3" |
