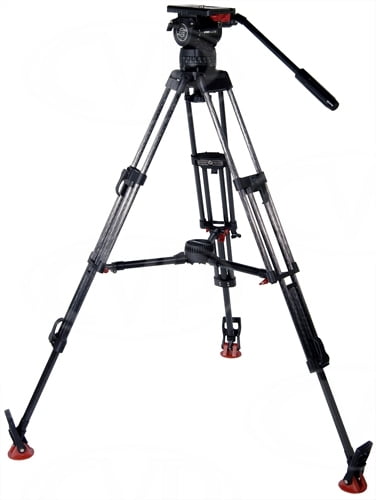

Sachtler System 12 SB ENG 2 MCF
The key to Sachtler' s successful fluid heads is their step switching. Now Sachtler' s innovative Speed Balance technology enables even faster and finer counter balance of your camera system.
Head |
|
Weight: | 2.7 kg |
6 lb | |
Payload: | 1 - 14 kg |
2.2 - 31 lb | |
Sliding range - plate: | 70 mm |
2.8 in | |
Counterbalance: | 12 steps |
Grades of drag: | 5 each horizontal and vertical + 0 |
Tilt range: | +90/-75° |
Temperature range: | -40° to +60° C |
-40 to +140° F | |
Camera fitting: | Touch & Go Plate 16 |
Tripod/Pedestal fitting: | 100 mm bowl, integrated flat base fitting |
Pan bar(s): | 1, Type DV 100 |
Level: | self-illuminating Touch Bubble |
Batteries (Level): | 3 x 625U or LR9 |
Tripod | |
Weight: | 2.6 kg |
5.7 lb | |
Payload: | 40 kg |
88 lb | |
Height with spreader: | 46 - 155 cm |
18.1 - 61.0 in | |
Height with mid-level spreader: | 50 - 151 cm |
19.7 - 59.5 in | |
Head fitting: | 100 mm |
Transport length: | 70 cm: |
