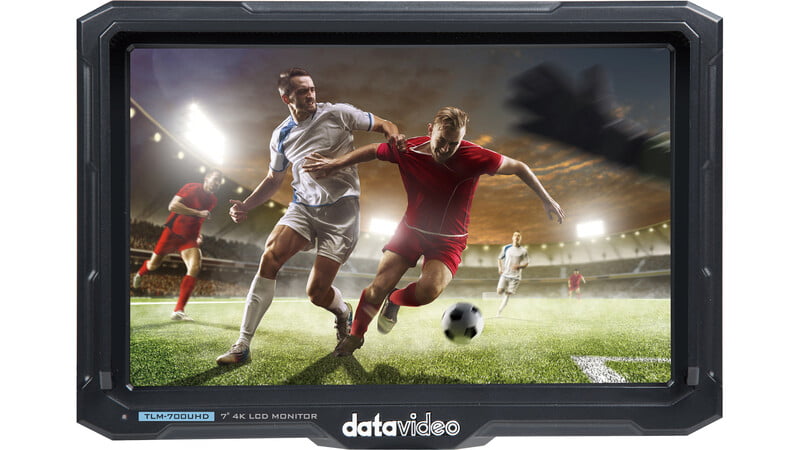

Datavideo TLM-700UHD
SPECIFICATION
Model Number
TLM-700UHD
Screen
7" TFT LCD
Chassis
Camera Mount
Resolution
1920x1200
Viewing Angle
(H) +85/-85°
(V) +85/-85°
Luminance/Contrast
450cd/m²
1000:1
Video Inputs
1x HDMI (2.0),
HDCP 2.2
Loop Through
1x HDMI (2.0)
Supported Input Resolutions
4096x2160p (23.98/24/25/29.97/30/50/59.94/60Hz)
3840x2160p (23.98/24/25/29.97/30/50/59.94/60Hz)
2048x1080p (50/59.94/60Hz)
1080p (23.98/24/25/29.97/30/50/59.94/60Hz)50i/59.94i/60i)
1080i (50/59.94/60Hz)
720p (23.98/24/25/29.97/30/50/59.94/60Hz)
576i(50Hz), 576p(50Hz),
480i(59.94/60Hz), 480p(59.94/60Hz)
Aspect Ratio
Full/16:9/1.85:1/2.35:1/4:3/3:2
Aspect Marker
Off/16:9/1.85:1/2.35:1/4:3/3:2/9:16
Safty Marker
Off/95%/93%/90%/88%/85%/80%
Tally LED
----
Audio In/Out
Embedded Audio (48KHz sampling)
Analog Stereo (Phone Jack),
Speaker x1 (2W)
Special Features
Focus assist (peaking), False Color, Histogram,
Exposure, Pixel to Pixel Zoom, Underscan, Check Field (blue-only
mode, monochrome mode)
Dimension (WxHxD)
182 x 129 x 37 mm
Weight
3 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 12W
What's in the Box
1 x TLM-700UHD product
1 x AD Switch DC 12V
1 x Folding sun shade cover
1 x HDMI A/C cable
1 x Battery plate
1 x Hot shoe mount
