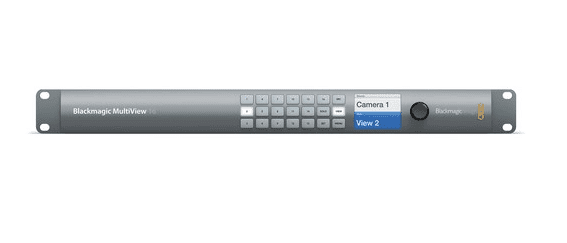

Blackmagic Design MultiView 16
MultiView 16 is perfect for larger installations because it has 16 independent 6G-SDI inputs so you can connect any combination of SD, HD or Ultra HD sources and monitor them all simultaneously on a single display!
Connections
SDI Video Inputs
16 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.
SDI Video Outputs
16 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.
SDI Rates
270Mb, 1.5G, 3G, 6G.
SDI Video Multi View Outputs
2 x 10-bit HD-SDI, 2 x 10 bit 6G‑SDI.
HDMI Video Multi View Outputs
1 x HDMI type A connector. Output supports EDID of the monitor.
SDI Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video.
Reference Input
Black Burst and Tri-Sync for SD, HD and 4K.
Multi Rate Support
Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video.
Updates
USB 2.0 high speed (480Mb/s) interface or via Ethernet.
Configuration
Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
