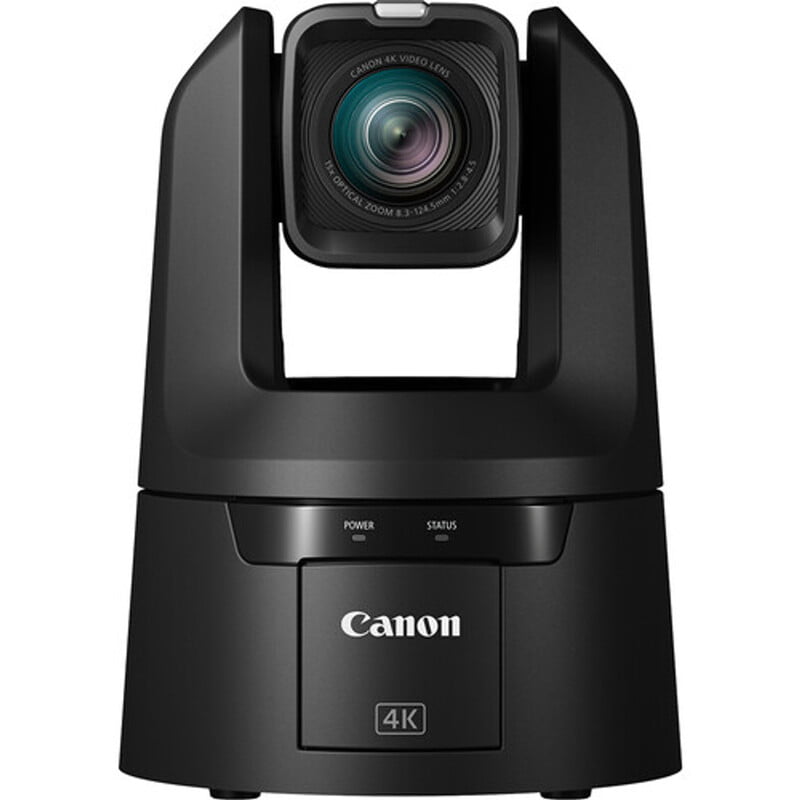

Canon CR-N700(BK)(EU/OTH)

• Image Sensor
  Type 1.0 (1.0 in.) single-plate CMOS sensor
• Effective Pixels
  approx. 8.29 megapixels (3840 x 2160)
• Lens
  15x optical zoom, 9-bladed iris diaphragm
• Optical Zoom
  15x optical zoom (30 x with advanced zoom)
• Digital Zoom
  20x digital zoom
• Focal Length
  8.3 – 124.5 mm, f/2.8 – 4.5,
  35mm equivalent focal length:
  approx. 25.5 (W) – 382.5 mm (T)
• Angle of View
  Horizontal: 73.0 (W) – 5.7° (T)
  Vertical: 45.2° (W) – 3.2° (T)
• Minimum Subject Illumination
  Approx. 3.0 lux (with 59.94 Hz frame frequency, 1/60 sec. shutter speed, 59.94P frame rate, and 21 dB gain)
  Approx. 2.5 lux (with 50.00 Hz frame frequency, 1/50 sec. shutter speed, 50.00P frame rate, and 21 dB gain)
• Shutter Speed
  1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
• Iris
  Manual/Automatic aperture
• Gain
  -6.0 dB - 36.0 dB
• ND Filter
  Built-in (Off, 1/4, 1/16, 1/64), motor operated
• Night Mode (IR Cut Filter Off)
  Yes
• White Balance
  AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K1, tungsten lamp: 3,200 K2),
• Focus
  Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking
  AF type: Dual Pixel CMOS AF, Contrast AF
  Detection: Face Detection, Eye Detection
• Minimum Focusing Distance
  1 cm at wide end, 60 cm across entire zooming range
• Gamma
  BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, PQ, HLG
• Pan and Tilt
  Pan operation range: Horizontal ±170°
  Pan operation speed: 0.1° – 100°/sec.
  Tilt operation range: Vertical -30° – +90°
  Tilt operation speed: 0.1° – 100°/sec.

Server

• Video Output Format: SDI
  [12G-SDI]
  3840 x 2160:
  59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit)
  1920 x 1080: 59.94P/59.94i/29.97P/29.97PsF/23.98P/50.00P/50.00i/25.00P/25.00PsF (4:2:2 10 bit)
  1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
  720 x 576: 59.94i/50.00i (4:2:2 10 bit)
  [3G-SDI]
  1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit)
  1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
  720 x 576: 59.94i/50.00i (4:2:2 10 bit)
• Video Output Format: HDMI
  3840 x 2160:
  59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit)
  1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit)
  1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
  720 x 576: 59.94i/50.00i (4:2:2 10 bit)
• Video Output Format: IP
  [Frame frequency 59.94 Hz]
  3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
  59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  [Frame frequency 29.97 Hz]
  3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
  29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  [Frame frequency 50.00 Hz]
  3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
  50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  [Frame frequency 25.00 Hz]
  3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
  25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  [Frame frequency 23.98 Hz]
  3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
  23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  *59.94 fps/50.00 fps is only when H.265.
  – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
  Resolution: 1280 x 720
  59.94/29.97 Hz: 14.99 fps,
  50.00/25.00 Hz: 12.50 fps,
  23.98 Hz: 11.99 fps
• Video Output Format: USB
  No
• Video Transmission Protocol
  Canon XC, RTSP/RTP, NDI3|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
• Preset
  Number of presets: Max. 100 (including home position)

Interface

• Communication Control
  LAN, Wi-Fi, Serial, IR
• Network Terminal
  LAN x 1, RJ45, 1000Base-T
• SDI OUT Terminal
  12G-SDI OUT Terminal
  BNC jack (output only) x 1, 0.8 Vp-p/75 Ω,
  SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272 compliant
  Embedded audio, Time code (VITC/LTC)

  6G-SDI OUT Terminal
  No

  3G-SDI OUT Terminal
  BNC jack (output only) x 1, 0.8 Vp-p/75 Ω,
  SMPTE ST 424, 425, 292, 259, 299, 272 compliant
  Embedded audio, Time code (VITC/LTC)
• GEN-LOCK Terminal
  BNC jack (also serves as the SYNC OUT terminal)
• TIME CODE Terminal
  BNC jack (for both input/output)
• HDMI OUT Terminal
  HDM connector (Type A), both video and audio are output only
• RS-422 Terminal
  RJ45 connector x 1
• INPUT 1/INPUT 2 Terminals
  XLR 3-pin jack (balanced) ((1) shield, (2) hot, (3) cold), two lines
  Sensitivity (MIC): -60 dBu (manual volume center, -18 dB full scale)
  Sensitivity (LINE): +4 dBu (manual volume center, -18 dB full scale)
  Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ)
• MIC Terminal
  ϕ 3.5 mm stereo mini-jack (unbalanced; supports plug-in power)
  Sensitivity (MIC): -72 dBu (manual volume center, -18 dB full scale)
  Sensitivity (LINE): -10 dBV (manual volume center, -18 dB full scale)
  Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
• USB Terminal
  No

Physical Features

• Operating Environment
  Temperature
  0°C – +40°C (+32°F – +104°F)
  Humidity
  10% – 90% (without condensation)
• Power Supply
  PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
  – PoE and PoE+ cannot be used
  External power source: 12 V DC
• Power Consumption
  PoE++ Input: Approx. 37.4 W4/1.2 A max. (body only)
  DC Input: Approx. 36.7 W/3.5 A max. (body only)
• Dimensions (W x H x D)
  Approx. 200 x 269 x 208 mm (excluding protrusions)
• Weight
  Approx. 4.4 kg (9.7 lbs) [Body Only]
• Noise
  NC 30 or less
