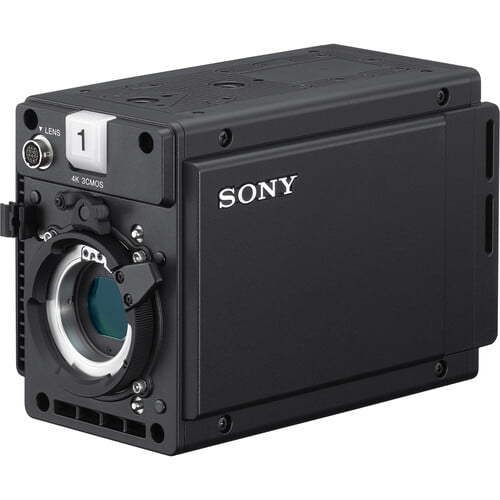

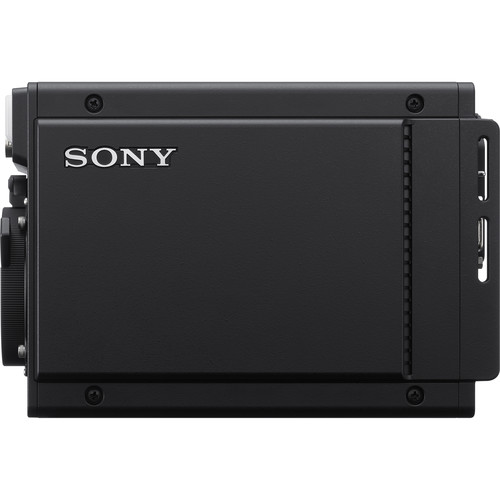

Sony 4K Global Shutter CMOS POV Camera

Specifications

General

Power requirements

DC 10.5 V to 17 V, 8.2 A (max.)

Operating temperature

20°C to +45°C (.4°F to +113°F)

Storage temperature

20°C to +60°C (.4°F to +140°F)

Mass

2.4 kg (5 lb 5 oz)

Camera section

Imager

3-chip 2/3-inch type 4K CMOS with global shutter

Effective resolution (H x V)

QFHD: 3840 × 2160*¹, HD: 1920 × 1080

*1 Optional HZC-UHD50 is required.

Signal format

1080/50i, 1080/59.94i, 720/50p, 720/59.94p
(1080/23.98PsF, 1080/24PsF, 1080/25PsF, 1080/29.97PsF, 50/59.94p, 4K/50p, 4K/59.94p: option)

Spectrum system

F1.4 prism

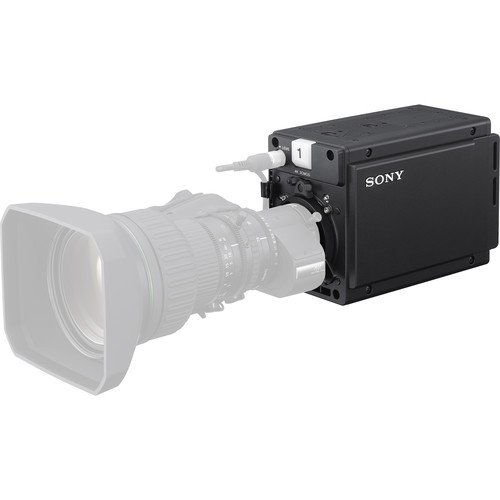

Lens mount

Sony bayonet mount

Built-in filters

ND: 1: CLEAR, 2: 1/4ND, 3: 1/8ND, 4: 1/16ND, 5: 1/64ND
CC: A: CROSS, B:3200K, C: 4300K, D: 6300K

Sensitivity (at 2000 lx, 3200K, 89.9% reflectance)

F10 (at 1080/59.94p, 720/59.94p), F11 (at 1080/50p, 720/50p)

Signal-to-noise ratio

-62 dB

Horizontal resolution

2,000 TV lines (at center)

Shutter speed

1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (1080/59.94i)
1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (1080/50i)

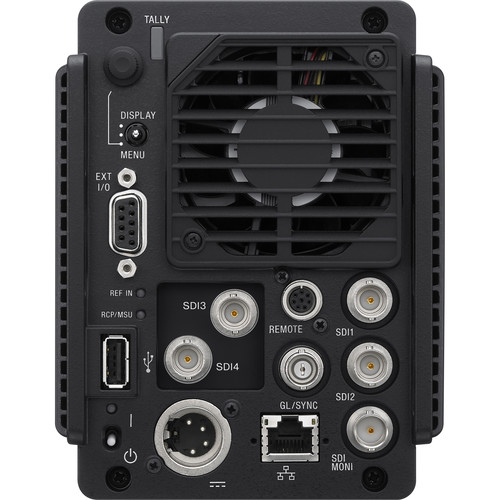

Inputs/Outputs

Genlock input

BNC (x1)
HD: SMPTE 274M, tri-level sync, 0.6 Vp-p, 75 Ω
SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω)

SDI 1 output

BNC (x1), 12G/3G/1.5G-SDI

SDI 2 output

BNC (x1), 12G/3G/1.5G-SDI

SDI 3 output

BNC (x1), 3G/1.5G-SDI

SDI 4 output

BNC (x1), 3G/1.5G-SDI

SDI MONI

BNC (x1), HD-SDI

EXT I/O

D-sub 15-pin (female) (x1)

Remote

8-pin (x1)

Lens

12-pin (x1)

LAN

RJ-45 (x1), 10BASE-T, 100BASE-TX

Supplied accessories

Tally number plate (1set), CD-ROM (1)
