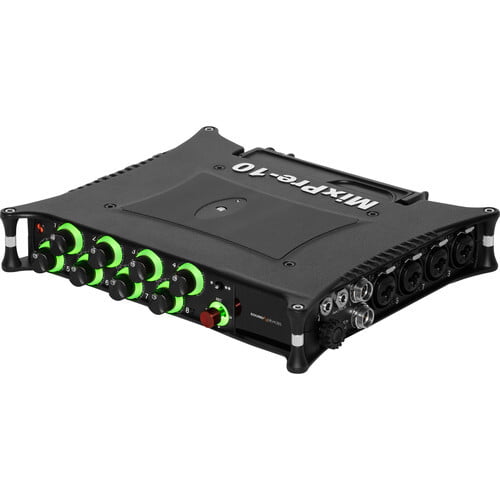

Sound Devices MixPre-10 II 10-Channel / 12-Track Multitrack 32-Bit Field Recorder
For professional videographers, field recordists, podcasters, and Ambisonics enthusiasts who need pristine audio capture of up to eight microphones, the Sound Devices MixPre-10 II multitrack field recorder is an ideal tool. Record up to ten tracks of external sources (eight channels via XLR-1/4" combo jacks and two channels via a 3.5mm mini jack)—as well as a stereo mix—at sample rates and resolutions of up to 192 kHz / 32-bit, all while monitoring audio in headphones. If you choose to use the MixPre-6 II to stream audio, you'll be able to achieve sample rates up to 96 kHz.
The MixPre-10 II offers many upgrades over its predecessor. Chief among these features is the ability to record at 32-bit floating point to an internal SD card. The unit also functions as an audio interface capable of 32-bit floating point streaming over USB to a Mac computer. This makes it nearly impossible for you to clip (distort) audio on the way in. Whether you're recording hot or making use of the unit's astounding 142 dB dynamic range, you'll only be handicapped by the quality of your microphone.
- Field Sound Mixing, Videography & VR
- 32-Bit Recording / 32-Bit USB Streaming
- Record up to 192 kHz / Stream to 96 kHz
- 8 x High-Gain, Low-Noise Mic Preamps
- Records 10 Inputs & Stereo Mix
- BNC I/O for LTC Timecode or Word Clock
- Adjustable Analog Limiters
- Polarity, Low-Cut, Delay & Pan Controls
- AC & Battery Powering Options
- SD Card with Auto-Copy to USB Drives
Specification
Sound Devices MixPre-10 II Specs
Portable Recorder
Number of Tracks | WAV: |
Max Sample Rate/Resolution | 192 kHz / 32-Bit |
Microphone | None |
Built-In Speaker | None |
Display | 1.6" / 40.64 mm Color LCD Touchscreen |
Memory Card Support | SD, SDHC, SDXC (Up to 512 GB) |
Internal Storage | None |
Recording
Audio File Formats | Recording: |
Sample Rates | WAV: |
Bit Depth | 16 / 24 / 32-Bit (A/D Conversion) |
Signal Processing | Delay, Limiter, Low-Cut Filter |
Timecode | Yes |
Frame Rates Supported | 23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF |
Clock Accuracy | ±2 ppm / 0.5 Frame per 24 Hrs (Timecode) |
Connectivity
Analog I/O | 8 x Combo XLR-1/4" 3-Pin Female Active-Balanced Line/Mic Input |
Digital I/O | 1 x 1/8" / 3.5 mm SMPTE Timecode Input |
Phantom Power | +48 V, Selectable On/Off (Selectable on Individual Inputs) |
Phantom Power Current | 10 mA per Channel |
Plug-In Power | Yes, 3 V |
Host Connection | 1 x USB Type-C (USB 2.0) |
Bluetooth | Bluetooth 4.0 (Remote) |
Performance
Frequency Response | WAV: |
Gain Range | Mic Inputs: |
Max Input Level | Mic Inputs: |
Max Output Level | Outputs: |
Headphone Output Power | 300 mW per Channel |
Dynamic Range | A/D Converters: |
Impedance | Mic/Line Inputs: |
THD+N | Inputs: |
EIN | -128 dBu (A-Weighted) |
Power
Power Options | Batteries, AC/DC Power Adapter |
Battery Type | 8 x AA (Included) |
AC/DC Power Adapter | 12 VDC at 3.75 A (Included) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
AC Input Power | VAC50 / 60 Hz |
Physical
Mounting Options | 1/4"-20 Male (Top) |
Operating Temperature | -4 to 86°F / -20 to 30°C |
Storage Temperature | -40 to 185°F / -40 to 85°C |
Operating Humidity | 0 to 90% |
Dimensions | 8.1 x 1.4 x 6.9" / 206 x 36 x 175 mm |
Weight | 32.1 oz / 0.9 kg (Without Batteries) |
Packaging Info
Package Weight | 5.03 lb |
Box Dimensions (LxWxH) | 13 x 11 x 4.5" |
