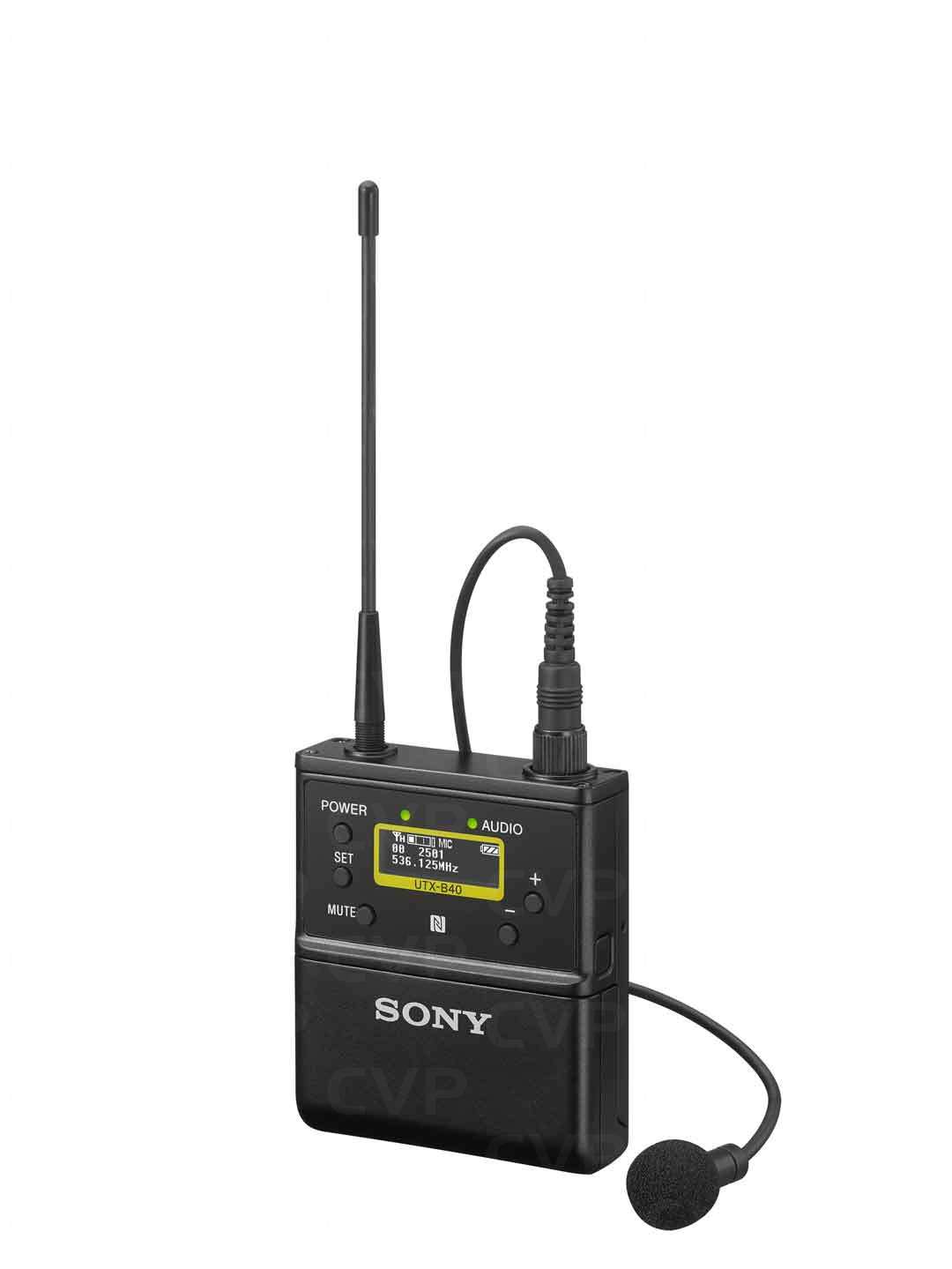

SONY UTX-B40K33 Bodypack Transmitter
Digital audio processing for high quality sound Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.
Oscillator Type | Crystal-controlled PLL synthesizer |
Antenna Type | 1/4 λ wavelength wire antenna |
Carrier Frequencies | 14UC : 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25) |
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) | |
42LA : 638.125 MHz to 697.875 MHz(UHF-TV channels 42 to 51) | |
90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz | |
21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29) | |
33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40) | |
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) | |
38CN : 710.025 MHz to 782.000 MHz(UHF-TV channels 38 to 46) | |
E : 794.125 MHz to 805.875 MHz | |
BJ: 806.125 MHz to 809.750 MHz | |
KR : 925.125 MHz to 937.500 MHz | |
RF Output Power | 30 mW/5 mW selectable (UC, U, CE, LA, CN models) |
10 mW/2 mW selectable (J, E, KR models) | |
Capsule Type | Electret condenser |
Directivity | Omni-directional |
Input Connector | 3.5mm diameter 3-pole locking mini jack |
Reference Audio Input Level | –60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) |
+4 dBu (LINE input) | |
Audio Attenuator Adjustment Range | 0 dB to 27 dB (3dB steps) |
Frequency Response | 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models) |
40 Hz to 15 kHz (Typical) (J model) | |
Signal-to-Noise Ratio | 60 dB (–60 dBV, 1 kHz input) |
102 dB (GAIN MODE set to AUTO GAIN, max.) | |
96 dB (GAIN MODE set to NORMAL, max.) | |
Distortion | 0.9% or less (–60 dBV, 1 kHz input) |
Audio Delay | Approx. 0.35 ms |
Tone Signal Frequency | In UWP-D compander mode: 32.382 kHz |
In UWP compander mode: 32 kHz | |
In WL800 compander mode: 32.768 kHz | |
Display | OLED |
Power Requirements | DC 3.0 V (two LR6/AA size alkaline batteries) |
DC 5.0 V (supplied from USB Type-C connector) | |
Battery life* | Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models) |
Approx. 10 hours with output power of 10 mW (J, E, KR models) | |
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F). | |
Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
Storage/Transport Temperature | –20 °C to +55 °C (–4 °F to +131 °F) |
Dimensions | 63 × 73 × 19 mm (2 1/2 × 2 7/8 × 3/4 in.) (W / H / D) (excluding antenna) |
Mass | Approx. 83 g (2.9 oz) (excluding batteries) |
