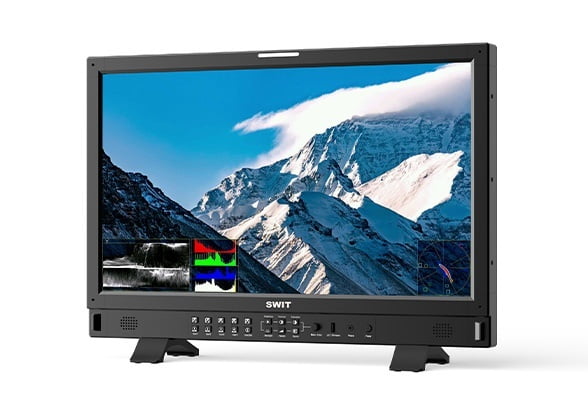

Swit BM-U245 23.8-inch 4K/8K 12GSDI Studio Monitor
Size | 23.8 inches |
Display area | 527.04×296.46mm |
Resolution | 3840×2160 |
Aspect ratio | 16:9 |
Brightness | 300nits |
Contrast | 1000:1 |
Color depth | 1.073G colors, 10-bit |
Signal process | 18-bit |
Viewing angle | 178°(H) /178°(V) |
Input: | |
BNC ×4 | 12G/6G/3G/HD/SD-SDI input |
HDMI ×1 | HDMI 2.0 input |
SFP ×1 | Optical Fiber input (By optional SFP adaptor) |
RS485 ×1 | TSL 3.1/4.0 UMD input |
RS485 ×1 | GPI (Tally) input |
RJ45 ×1 | 1000M Ethernet input for Webserver IP control |
Output: | |
BNC ×4 | 12G/6G/3G/HD/SD-SDI loop output |
RS485 ×1 | TSL 3.1/4.0 UMD output |
Analog audio | 3.5mm headphone and speaker |
Video Format: | |
SDI 1/2/3/4 | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
2048×1080i (50 / 59.94 / 60) | |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
1080i (60 / 59.94 / 50) | |
1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
720p (60 / 59.94 / 50) | |
480i (59.94), 576I (50) | |
Quad Link 4K (Each channel) | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
Quad Link 8K (Each channel) | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
HDMI | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
1080i (60 / 59.94 / 50) | |
720p (60 / 59.94 / 50) | |
General: | |
Input voltage | DC 12V-17V, AC 100-240V, 50/60Hz |
Power consumption | 70W |
Working temperature | 0°C～+50°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 580.9×392.3×88.8mm |
Net weight (main body) | 8.87kg |
