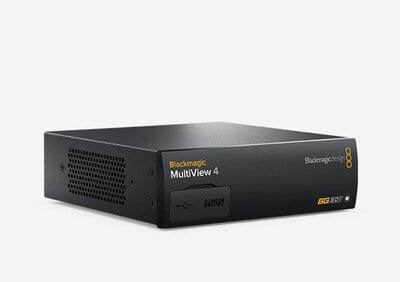

Blackmagic Design Multiview 4
The Blackmagic Design MultiView 4 features four 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of high resolution displays to view each source with increased clarity.
Specifications
· Interfaces
Output Connectors | 1 x BNC (6G-SDI) |
Other I/O | 1 x RJ45 |
· Standards
Video Standard Compliance | SMPTE 259M/292M/296M/310M/425M-B |
Re-Clocking | Yes |
· Transmission
Video Format | SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) |
Max Sample Rate/Resolution | 48 kHz / 24-Bit |
Maximum Data Rate | 6 Gb/s |
· Power
Power Consumption | 90 to 240 VAC (16 W) |
· Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
· General
Rack Form Factor | 1 RU |
Dimensions | 6.7 x 5.5 x 1.8" / 17.0 x 14.0 x 4.5 cm |
Weight | 1.28 lb / 0.58 kg |
·
