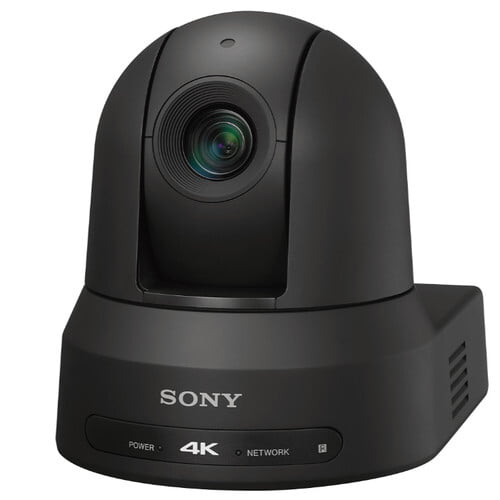

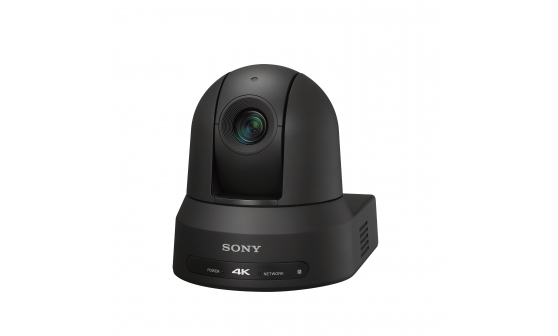

Sony BRC-X400 4K PTZ Camera with HDMI, IP & 3G-SDI Output (Black)

Image Sensor

1-Chip 1/2.5" CMOS Sensor

Horizontal Resolution (TV Lines)

1700 TV Lines

Sensor Resolution

3840 x 2160 (8.3 MP)

Gain

0 to 48 dB

Minimum Illumination

1.6 Lux at 1/30 Shutter Speed

Shutter Speed

1/1 to 1/10,000 sec

Max Digital Zoom

80x ( in 1080p)

Flip / Mirror Support

Image Flip

Optical Zoom Ratio

20x

Focal Length

4.4 to 88mm

Field of View

Horizontal: 70°

Maximum Aperture

f/2 to 3.8

Minimum Focusing Distance

Wide: 3.1" / 8.0 cm
Telephoto: 31.5" / 80.0 cm

Focus Control

Autofocus
Manual Focus

Output Formats

HDMI, RJ45: 3840 x 2160p at 23.98, 25, 29.97 fps
1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps
1920 x 1080i at 50 fps
1280 x 720p at 50, 59.94 fps
SDI: 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps
1920 x 1080i at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps

Embedded Audio

SDI: 2-Channel
HDMI: 2-Channel

Recording Modes

Not Specified by Manufacturer

Presets

256 via IP
100 via VISCA

Move Speed

Pan: 0.5 to 300°/sec
Tilt: 0.5 to 126°/sec

Movement Range

Pan: 340° (-170 to 170°)
Tilt: 110° (-20 to 90°)

Tally Light

Yes

Supported Control Protocols

IP
RS-422
VISCA

Video Output Connectors

1 x BNC (3G-SDI) Female
1 x HDMI Type A Female
1 x RJ45 Female

Audio I/O

2 x 1/8" / 3.5 mm Stereo Mic/Line Level Input

Control Interface

1 x RJ45 (RS-422, VISCA) Input
1 x RJ45 (RS-422, VISCA) Output

Other I/O

1 x BNC (Sync) Input

PoE Support

PoE+ 802.3at

Power Connectors

1 x JEITA (10.8 to 13.2 VDC)

Power Consumption

25.5 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Tripod Mounting Thread

1 x 1/4"-20 Female

Dimensions

7.88 x 6.99 x 6.24" / 200.2 x 177.5 x 158.4 mm

Weight

3.97 lb / 1.8 kg

Package Weight

Box Dimensions (LxWxH)

12.8 x 12.7 x 12.2"
