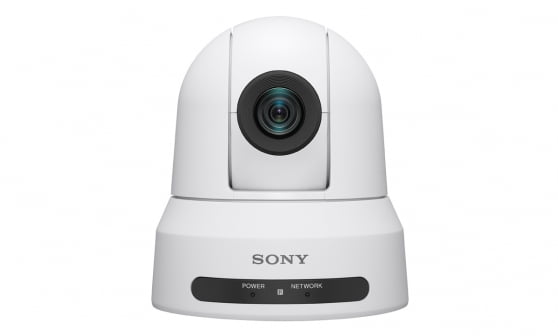

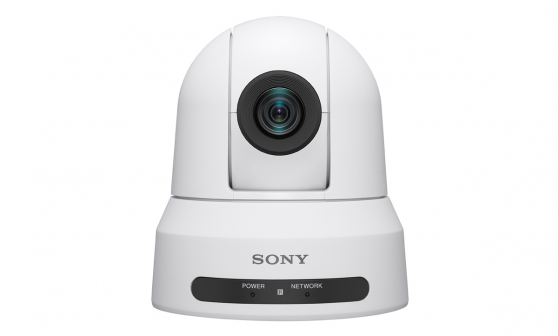

Sony SRG-X400(SRGX400) IP 4K* Pan-Tilt-Zoom Camera with NDI®**|HX capability
SRG-X4001080p PTZ Camera with HDMI, IP & 3G-SDI Output from Sony. Out of the box, this camera captures video at resolutions up to 1920 x 1080 at 60 fps. However, an optional license enables you to upgrade the camera for UHD 4K 3840 x 2160 performance.
Specification
Image Sensor
Image Sensor | 1-Chip 1/2.5" CMOS Sensor |
Horizontal Resolution (TV Lines) | 1000 TV Lines |
Sensor Resolution | 3840 x 2160 (8.3 MP) |
Gain | 0 to 48 dB |
Minimum Illumination | 1.6 Lux at 1/30 Shutter Speed |
Camera
Shutter Speed | 1/1 to 1/10,000 sec |
Max Digital Zoom | 40x ( in 1080p) |
Flip / Mirror Support | Image Flip |
Lens
Optical Zoom Ratio | 20x |
Focal Length | 4.4 to 88mm |
Field of View | Horizontal: 70° |
Maximum Aperture | f/2 to 3.8 |
Minimum Focus Distance | Wide: 3.1" / 8.0 cm |
Focus Control | Autofocus |
Video Output
Output Formats | SDI, HDMI, RJ45: 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps |
Embedded Audio | SDI: 2-Channel |
Recording
Recording Modes | Not Specified by Manufacturer |
Control
Presets | 256 via IP |
Move Speed | Pan: 0.5 to 300°/sec |
Movement Range | Pan: 340° (-170 to 170°) |
Supported Control Protocols | IP |
Interfaces
Video Output Connectors | 1 x BNC (3G-SDI) Female |
Audio I/O | 2 x 1/8" / 3.5 mm Stereo Mic/Line Level Input |
Control Interface | 1 x RJ45 (RS-422, VISCA) Input |
Power
PoE Support | PoE+ 802.3at |
Power Connectors | 1 x JEITA (10.8 to 13.2 VDC) |
Power Consumption | 25.5 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Tripod Mounting Thread | 1 x 1/4"-20 Female |
Dimensions | 7.88 x 6.99 x 6.24" / 200.2 x 177.5 x 158.4 mm |
Weight | 3.97 lb / 1.8 kg |
Packaging Info
Package Weight | 8.11 lb |
Box Dimensions (LxWxH) | 13.8 x 12.7 x 12.1" |
