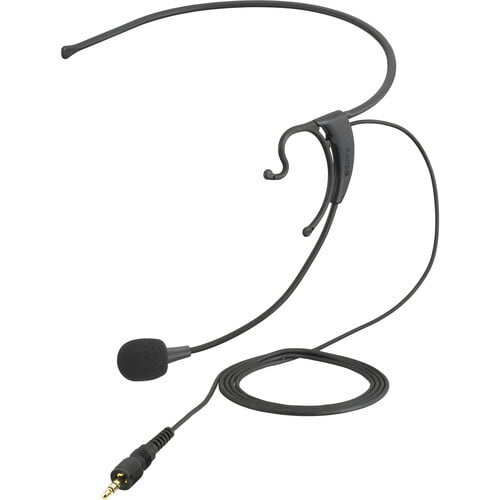

Sony ECM-HZ1UBMP Cardioid Headset Microphone for DWZ Series Wireless Systems
Designed for presenters and vocalists, the Sony ECM-HZ1UBMP is a lightweight headset microphone that delivers a clear voice sound for hands-free public-speaking and singing applications.
Specifications
Microphone
Form Factor | Headworn |
Sound Field | Mono |
Operating Principle | Pressure Operated |
Capsule | 1 x Electret Condenser |
Polar Pattern | Cardioid |
Windscreen | Foam (Included) |
Performance
Frequency Range | 60 Hz to 18 kHz |
Impedance | 1.4 Kilohms ± 30% |
Sensitivity | -31 dB at 1 kHz |
Connectivity
Output Connectors | 1 x 1/8" / 3.5 mm TRS Male (Lockable) |
Cable Length | 3.94' / 1.2 m (Straight) |
Cable Diameter | 0.091" / 2.3 mm |
Power
Operating Voltage | 1.5 to 10 V (Plug-In Power) |
Operating Current Consumption | 600 µA (Plug-In Power) |
Physical
Color | Black |
Mounting | Over-Ear (Single) |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 122°F / -20 to 50°C |
Dimensions | ø: 0.59 x W: 0.27 x L: 6.69" / ø: 15 x W: 6.75 x L: 170 mm |
Weight | 0.35 oz / 10 g |
Packaging Info
Package Weight | 0.295 lb |
Box Dimensions (LxWxH) | 7.55 x 4.75 x 1.35" |
