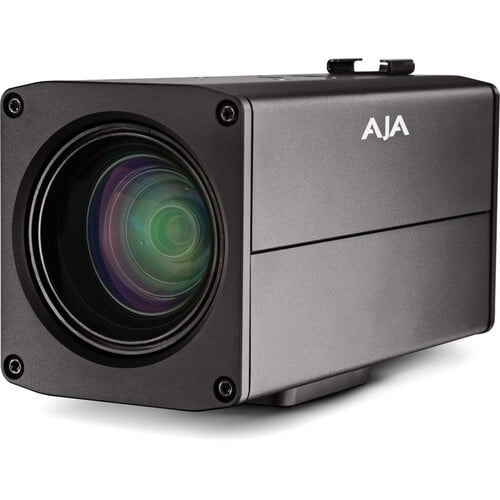

AJA RovoCam Integrated 4K/HD Camera with HDBaseT
$3,115.00
Tags:
RovoCam is AJA’s first compact block camera for industrial, corporate, security, ProAV and broadcast
applications.
applications.
Product Details
SPECIFICATION
amera Module
- Sony FCB-ER8300
Video Formats
- (UltraHD) 3840 x 2160p 25, 29.97
- (HD) 1080p 50, 59.94
- HD) 1080i 50, 59.94
- (HD) 720p 50, 59.94
- (SD) 720 x 480p 59.94
- (SD) 720 x 576p 50
Pixel Format
- YUV 4:2:2, RGB 4:4:4
Sensor
- Progressive scan CMOS, 1/2.3 3840 x 2160 8.93 Mega Pixels
Image Processor
- Noise reduction (2D/3D)
- Visibility enhancer ICR (day and night) Slow AE
- High sensitivity
- Gamma
- Defog
- Color enhancement picture effect
- Horizontal and vertical flip
- Spot focus and spot aperture controls
Lens
- Focal Length: 3.9 to 46.8 mm
Focus
- Auto, Manual, One push trigger mode
Lens Control
- Zoom, Focus, Iris, IRCS
F Value
- 1.8 to 2.0
Horizontal Angle of View
- 70.7 degrees (wide)
- 6.2 degrees (telephoto)
Magnification
- 12x optical, 20x or 24x with Super Resolution Zoom
Digital Zoom
- 12x
Super Resolution Zoom
- UltraHD: 1.67x (max 20x combined with 12x optical zoom)
- HD: 2.0x (max 24x combined with 12x optical zoom)
White Balance
- Auto, ATW, Indoor, Outdoor, One Push, Manual, Sodium lamp
- Manual red and blue gain controls
Video Output Digital
- HDBaseT (RJ-45, Requires Receiver Unit such as RovoRx-HDMI)
- Cat 5e 70m (230 ft) or Cat 6a 100m (328 ft)
Audio Input Analog
- 1x 3.5mm TRS Input with 3V PiP (Plug in Power)
Control
- 1x 3.5mm TRS Input for RS-232/VISCA camera control
*RS-232 can also pass the control from the RovoRx-HDMI unit as well.
User Interface
- VISCA Compatible Control Software and Hardware
- AJA RovoControl software for macOS and Windows
- 1x USB to 3.5mm TRS cable for RS-232 control
Size (w x d x h)
- 2.8” x 5.9” x 3.6" (71.12 x 149.86 x 91.44 mm) (Including tripod mount and cold shoe)
Weight
- 2.2 lbs (1.0 kg)
Power
- 10-12Vdc 2 pin pluggable terminal block, 0.6A max
- 6W typical, 8W max or Power over HDBaseT
- Conforming to IEEE802.3af-2003 mode A, 6W typical, 8W max
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
