Vinten FBH-175 bracket - Quartz Two
$1,997.78
Tags:

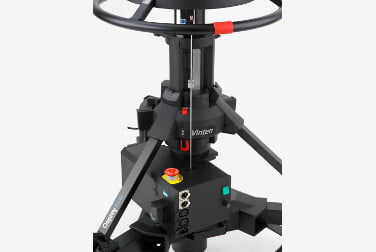

The FBH-175 Bolt on Height Drive is designed for use with the manual pedestals from Vinten which do not have a fully skirted base, such as the Vinten Osprey Elite and the Quartz Two.
Product Details
SPECIFICATION
Part Number, V4031-0012
Compatible with the
following Pedestals:, Vinten Osprey Elite, Osprey Plus (single stage) and Quartz Two
Maximum Height Travel, 900 mm / 35.4 ”
Weight, 6.75 kg / 14.9 lbs
Maximum Payload, 80 kg / 176 lbs
Maximum ‘On Shot’ Stroke, 800 mm / 31.5 “
Maximum Height Speed (On Shot), 150 mm / 6 “ / second
Minimum Height Speed (On Shot), 10 mm / 0.4 “ / second
Manual Operation Disconnect, Yes
Power Consumption - Peak, 170W
Integral Power Supply Unit, Auto ranging 110-240V AC 50/60 Hz
