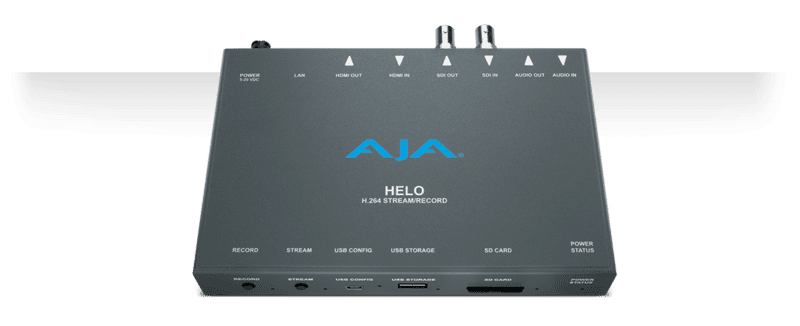

Ross Video GRAPHITE-HELO-STREAM AJA-HELO Streaming Unit

Video Formats

2K: 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD: 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD: 1080i 25, 29.97, 30 HD: 720p 50, 59.94, 60
SD: 525i, 625i
(2K inputs are center cut to 1080p and are only supported on SDI input)

Video Codec Support

H.264/MPEG-4 Encoder

Video Parameters

100 KB/s to 20 MB/s (TBD) streamed output
100 KB/s to 20 MB/s (TBD) recorded output
Up to 1080p60
Supports Baseline, Main and High
2.0, 3.0, 3.1, 4.0 and 4.1 level support

Video Input Digital

1 x 3G-SDI, SMPTE-259/292/296/424, 10-bit
Single Link 4:2:2, 4:4:4 (1 x BNC)
1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr

Video Output Digital

1 x 3G-SDI, SMPTE-292/296/424, 10-bit
Single Link 4:2:2 or 4:4:4 (1 x BNC)
1 x HDMI Standard Type A connector
HDMI v1.4a, RGB or YCbCr

Audio Encoding

32 KB/s to 256 KB/s
32, 44.1 and 48 kHz 2-channel stereo
MPEG-4 AAC-LC

Audio Input Digital

2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

Audio Input Analog

2-channel, Analog (Line Level, Unbalanced stereo 1 x 3.5 mm TRS connector)

Audio Output Digital

2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

Audio Output Analog

2-channel, Analog (Line Level, Unbalanced stereo 1 x 3.5 mm TRS connector)

Protocols

RTMP, RTSP/RTP, Unicast and Multi Unicast (3 to 10 Clients)

Storage

1 x USB 2.0 slot, (Can be NTFS 3.1 or FAT32)
1 x SD Card slot, SD and SDHC cards (NTFS 3.1)
Mounted Network Share

User Interface

Power

100 to 240 V, 50/60 Hz Universal Input, +5-20 VDC 13 W Maximum

Environment

Operating Temperature: 32 to 104°F (0 to 40°C)
Operating Relative Humidity: 10 to 90% non-condensing
Operating Altitude: <10,000' (3,000 m)
Safe Storage Temperature (Power OFF): -40 to 140°F (-40 to 60°C)

Dimensions

7.0 x 4.7 x 1.0" (18 x 14 x 26 cm)

Weight

0.8 lb (0.4 kg)
