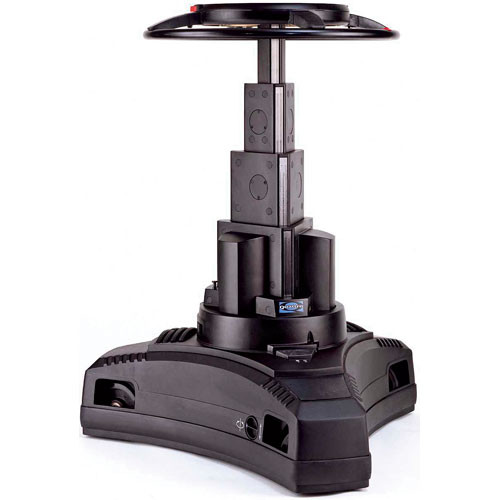

Vinten Pedestal Quattro-L
The Vinten V3852-0003 Quattro-L Pedestal is a high performance, 4-stage studio pedestal capable of handling a wide range of studio cameras. This pedestal provides extensive on-shot movement capability with full crab and steer functionality. Both Quattro versions provide an extensive height range capability and the opportunity to achieve creative lower angle shots.
Specification
General | |
Load Capacity | 231.5 lb (105 kg) |
Trim Ring | 16.5 lb (7.5 kg)) |
Bowl Diameter/Thread | Flat, 4-Bolt |
Steering Ring Diameter | 29" (74cm) |
Folded/Transport Length | N/A |
Minimum Height | 18.18" (36.2cm) |
Maximum Height | 56.6" (149cm) |
Weight | 383.4 lb (158 kg) |
Warranty | 2 Year Warranty |
Post | |
Stages | 4 |
On-Shot Stroke | 39.4" (100cm)) |
Dolly | |
Doorway Tracking Width | 42.1" (107cm)) |
Transit Doorway Width | 36.4" (92.4cm) ) |
Narrow Doorway Width | 36.4" (92.4cm)) |
Wheel Diameter | 6.3" (16cm) |
