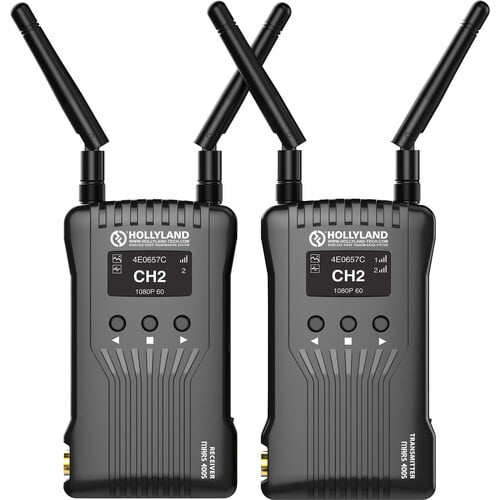

Hollyland Mars 400S SDI/HDMI Wireless Video Transmission System
The Mars 400S from Hollyland is an entry-level 1080p60 transmitter/receiver system featuring a 400' line-of-sight transmission range. In a compact design, the transmitter and receiver each have an SDI and HDMI connection. The choice between the two connection types expands your compatibility options and also lets you grow in case currently you only need one.
Specification
Hollyland Mars 400
Wireless
Wireless Range | 400' / 121.92 m (Line-of-Sight) |
Channel Bandwidth | 20 MHz |
Frequency Range | 5 GHz |
Latency | < 0.1 sec |
RF Power | ≤ 21 dBm |
RF Sensitivity | -80 dBm |
Wi-Fi | Yes |
Interfaces
Transmitter Antenna Ports | 2 x RP-SMA Male |
Receiver Antenna Ports | 2 x RP-SMA Male |
Transmitter Video Connectors | 1 x BNC (3G-SDI / HD-SDI) Input |
Receiver Video Connectors | 1 x BNC (3G-SDI) Output |
Transmitter Other I/O | 1 x USB Type-C |
Receiver Other I/O | 1 x USB Type-C |
Embedded Audio | SDI |
Format Support
Video Format | SDI/BNC: |
Display
Transmitter Panel Type | OLED |
Receiver Panel Type | OLED |
Power
Transmitter Battery Support | 1 x Sony L-Series / NP-F Type |
Receiver Battery Support | 1 x Sony L-Series / NP-F Type |
Transmitter Power Connector | 1 x Barrel (6 to 16 VDC) Input |
Receiver Power Connector | 1 x Barrel (6 to 16 VDC) Input |
Transmitter Power Consumption | Device: (11 W) |
Receiver Power Consumption | Device: (6 W) |
General
Transmitter Mounting | 1 x 1/4"-20 Female |
Receiver Mounting | 1 x 1/4"-20 Female |
Materials | Metal |
Transmitter Dimensions | 4.41 x 2.56 x 0.94" / 11.2 x 6.5 x 2.4 cm |
Receiver Dimensions | 4.41 x 2.56 x 0.94" / 11.2 x 6.5 x 2.4 cm |
Transmitter Weight | 0.4 lb / 192 g |
Receiver Weight | 0.4 lb / 189 g |
Packaging Info
Package Weight | 1.94 lb |
Box Dimensions (LxWxH) | 7.3 x 5.7 x 3.2" |
