Blackmagic Design ATEM 4 M/E Constellation IP

100G 2110 IP Networks

8 x 100G QSFP28 connections.

Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.

Senders and Receivers per 100G Pair

8 x Ultra HD

10G Control Network

2 x 10G RJ45 Ethernet for NMOS control plus loading media, saving and loading presets.

Reference Network

2 x RJ45 Ethernet for 2110 PTP clock.

1G Management

1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For ATEM Setup utility and software updates.

Analog Audio Outputs

1 x 6.35 mm headphone jack.

Total Video Inputs

32

Total Video Outputs

32

Total Aux Outputs

32

Total Audio Outputs

1 x 6.35 mm headphone jack.

1 x Speaker

Frame Rate and Format Converters

On all 32 inputs

Extra Audio Outputs

1 x 6.35 mm headphone jack. (the audio will be the mix of PGM plus engineering, production and side tone.)

1 x built-in speaker.

Program Outputs

Any of the 32 outputs.

Preview Outputs

Any of the 32 outputs.

Multiview Outputs

4 of any of the 32 outputs.

Webcam Output

Rear USB-C supports 720p or 1080p at PGM frame.

Control Panel Connection

2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets.

Internal Timecode Generator

Yes

Computer Interface

Rear USB-C supports USB 3.0 for external USB audio (Fairlight Live), webcam out, ATEM Setup utility and software updates.

Front USB-C supports USB 2.0 for updates and setup only.

Power

2 x IEC C14 power inputs.

SMPTE 2110-20 (Uncompressed Video)

IGMP v2

SMPTE 2110-21 (Traffic Shaping)

Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110-30 (PCM)

Audio Conformance level: Level C

SMPTE 2110-40 (Ancillary Data)

Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.

Codec

Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.

Precision Time Protocol

IEEE 1588-2008 (PTP v2)

ST 2059-1

ST 2059-2

NMOS IS-04 Discovery and Registration

v1.3.2

Peer-to-peer via mDNS/DNS-SD

NMOS IS-05 Connection Management

v1.1.2

NMOS BCP-002-01

Natural Grouping

NMOS BCP-004-01

Receiver capabilities

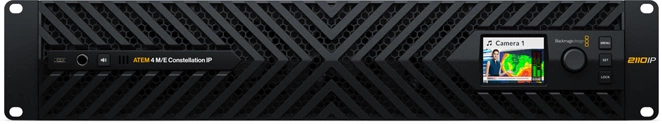

Front panel

Built in HD LCD monitor for video, front USB-C connection for updates, setup and control, front speaker and headphone connection, menu control knob and set button, front panel lock button.

Physical Installation

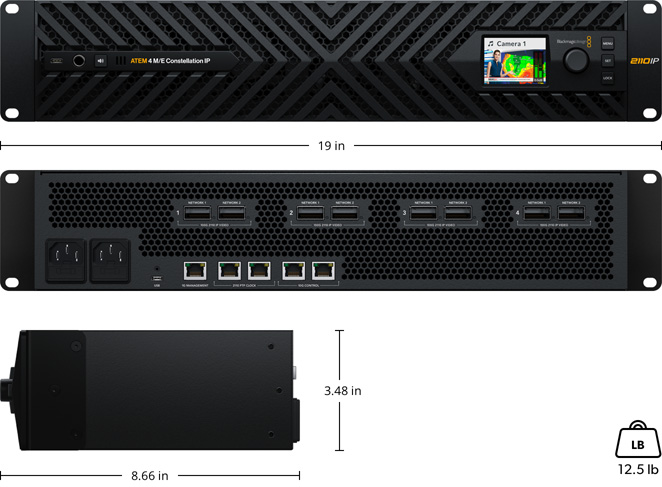

2 rack units.

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing
