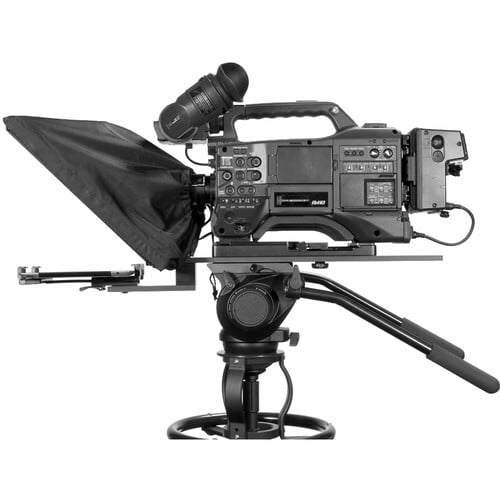

DATAVIDEO TP-650GLS - Large Screen Prompter Kit for ENG Cameras
The Teleprompter Package from Datavideo is for use with the iPad & Android tablets and ENG cameras. It includes cloth hood for the camera, glass frame, 60/40 glass sheet, prompter rig, adjustable mounting brackets for the tablet (can fit up to 12.9" iPad Pro), and camera riser.
SPECIFICATION
Model Number
TP-650
Device Used
Apple iPads
Android Tablets
Camera-Mount Interface
Prompter Rail
Smartphone / Tablet Size
Min. Tablet Width: 145mm
Max. Tablet Width: 265mm
Multi-language Support
English
Dutch
Spanish
Portuguese
Russian
Chinese(Traditional)
Chinese (Simplified)
Hood Dimension / Prompter Size
Width: 415mm
Height: 290mm
Depth: 750mm
LCD Native Resolution
N/A
LCD Brightness
N/A
Remote Control
*Optional Universal Bluetooth Wireless Remote (with USB cable adapter for charging purposes)
Weight
3.3 Kg
Operating Temp. Range
0~40 °C
Power
N/A
Carry Case Dimensions (excluding handle)
N/A
What's in the Box
1 x Main TP-650 ENG prompter rail
1 x Smaller rail with spacer block for mounting bracket
2 x ¼” Screws Length 27mm secures item B to A
1 x Hex Tool (Black) for counter sunk Hex head screws
1 x Hex Tool (Silver) for Glass Frame Hex screws
1 x ¼” Screw Length 8mm secures item F to B
1 x Adjustable Mounting Bracket with locking lever
1 x Glass frame with 4 Velcro straps
2 x Wing nut screws ¼” Length 16mm secures item G to A
1 x Cloth Snood/Hood with Velcro straps
1 x 60/40 Glass sheet with Green and Red stickers
1 x Snood/Hood support wire
2 x ¼” Camera securing screws length 16mm
2 x ¼” Camera securing screws length 31mm
1 x Camera riser block 15mm thick
1 x Cloth case for Snood, Mirror Glass and Glass frame
1 x Adapter screw to convert 3/8” hole to ¼” hole
1 x ¼” Counter sunk hex head screw length 16mm
1 x ¼” Counter sunk hex head screw length 31mm
Retail carton with protective foam packing
