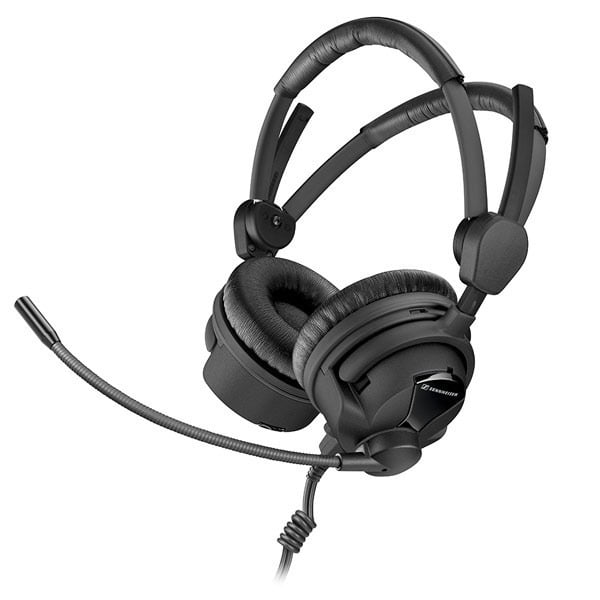

Sennheiser HME 26-II-600 Broadcast Headset Microphone
The pre-polarized condenser microphone features brilliant acoustic performance for crystal clear audio transmission in highest broadcast quality and has an excellent feedback rejection.
Impedance
100 Ohm stereo (headphones)
600 Ohm stereo (headphones)
Characteristic SPL
1 kHz, 1 mW: 105 dB
1 kHz, 1 V: 115 dB
1 kHz, 1 V: 107 dB
Pick-up pattern
omnidirectional (BKE 4-2)
cardioid (BKE 4-4)
Max. Sound pressure level (active)
ActiveGard™ switched off: 128 dB at 1 kHz, 200 mW
ActiveGard™ switched off: 127 dB at 1 kHz, 200 mW
ActiveGard© activated: 105 dB at 1 kHz, 200mW
Frequency response (Microphone)
40 to 20.000 Hz
Transducer principle (Microphone)
pre-polarized condenser microphone
Frequency response (Headphones)
40 to 18.000 Hz
Contact pressure
3,9 N
Ear coupling
supra-aural
Weight
(w/o cable and w/o connector) approx. 205 g
Min. terminating impedance
4700 Ω
Storage temperature
-55 °C to 70 °C
Operating temperature
-15 °C to 55°C
Maximum sound pressure level (passive)
150 dB; 0,5 % THD
Output voltage
4 mV / Pa +/- 2,5 dB
Operating voltage (stand alone)
5 - 15 V DC
Transducer principle (headphones)
dynamic, closed
