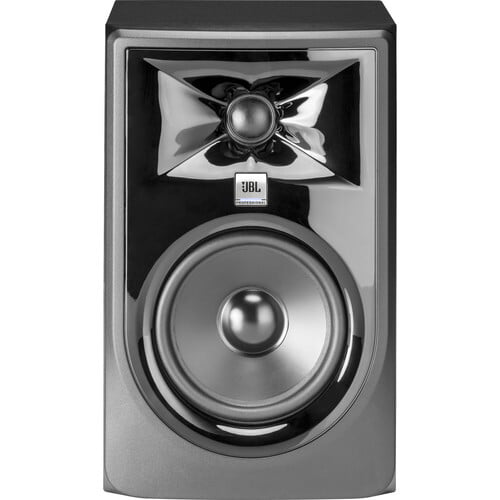

JBL 305P MkII- Powered 5' Two-Way Studio Monitor
The JBL 305P MkII - Powered 5" Two-Way Studio Monitor is a bi-amplified reference monitor with next-generation drivers, offering high detail, precise imaging, a wide sweet spot, and a remarkable dynamic range to enhance the mix capabilities of any modern workspace. The magnetically-shielded 305P MkII features dual 41W Class-D amplifiers, which power the 5" low frequency woofer and woven-composite 1" neodymium tweeter. The combined output of the woofer and tweeter offer a frequency response of 49 Hz to 20 kHz with a peak SPL of 108 dB.
JBL 305P MKII Specs
Drivers | LF Driver: 5.0" / 127.0 mm |
Crossover | 1725 Hz 4th order acoustic Linkwitz-Riley |
Magnetic Shielding | Yes |
Input Sensitivity | 92 dB at 3.3' / 1 m (-10 dBV input) |
Power Configurations | Bi-amplified |
HF Driver Power Amp | 41 W, Class-D |
LF Driver Power Amp | 41 W, Class-D |
Frequency Response | 49 Hz to 20 kHz (±3 dB) |
Frequency Range | 43 Hz to 24 kHz (-10 dB) |
Low Frequency Extension | 43 Hz |
SPL | Continuous: 94 dB |
Maximum Input | Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu |
THD | System Distortion Criteria: Electrical Distortion Criteria: 0.2% THD @ 1 kHz / 2.83 VRMS output; |
Signal to Noise Ratio | 75 dBA (A-weighted), 70 dBr (unweighted), relative to 2.83 VRMS output |
Dispersion | H x V: 120° x 90° |
Inputs | 1 x XLR female (balanced) |
HF Trim Control | -2 dB, 0 dB, +2 dB |
Equalization | Boundary EQ: |
Enclosure Type | Ported |
Construction Material | MDF: 0.6" / 15.0 mm |
Finish | Matte black PVC |
Baffle | Injection-molded structural ABS |
Power | 100 to 240 VAC (±10%), 50 / 60 Hz |
Dimensions (H x W x D) | 11.7 x 7.3 x 9.1" / 297.2 x 185.4 x 231.1 mm |
Weight | 10.4 lb / 4.7 kg |
Packaging Info
Package Weight | 5.6 kg |
Box Dimensions (LxWxH) | 14 x 12 x 10" |
