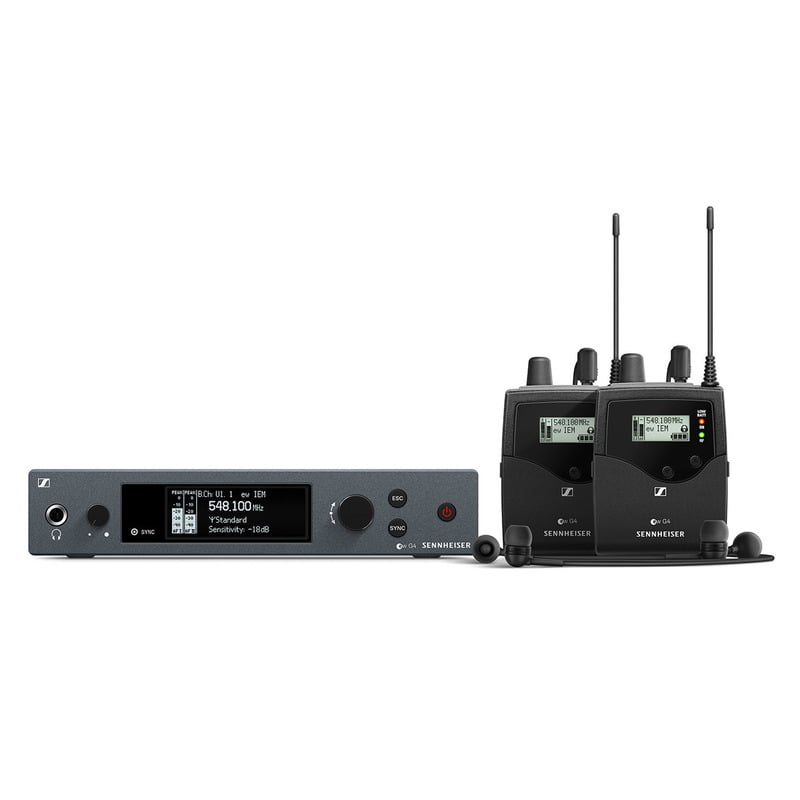

Sennheiser EW IEM G4-TWIN-D

SR IEM G4

• Frequency range: 780 - 822 MHz
• Dimensions: Approx. 202 x 212 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <0.9 %
• Weight: Approx. 980 g
• Audio input: 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
• Audio output: ¼" (6.3 mm) stereo jack socket, balanced
• Signal-to-noise ratio: >90 dB
• RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Modulation: Wideband FM stereo (MPX pilot tone)
• Power supply: 12 V DC
• Current consumption: max. 350 mA
• Max. Input voltage: +22 dBu
• Transmission frequency: Max
• AF frequency response: 25 Hz to 15 kHz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ±10 ppm
• Antenna Output: BNC socket, 50 Ω

EK IEM G4:

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9 %
• Weight: (incl. batteries) approx. 125 g
• Signal-to-noise ratio: approx. 90 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: approx. 4 to 6 hours (depending on volume level)
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption:
• at nominal voltage: approx. 140 mA
• with transmitter switched off: ≤ 25 µA
• Adjacent channel rejection: Typically ≥ 65 dB
• Audio-Output-Power: 2 x 100 mW at 32 Ω
• Intermodulation attenuation: Typically ≥ 70 dB
• Limiter: –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving frequency: Max. 1680 frequencies
• RF sensitivity: < 4 μV, typ. 1.6 μV for 52 dBA rms S/N
• Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB
• Bass Boost: +8 dB at 80 kHz
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: Adaptive diversity
• Blocking: ≥ 80 dB
