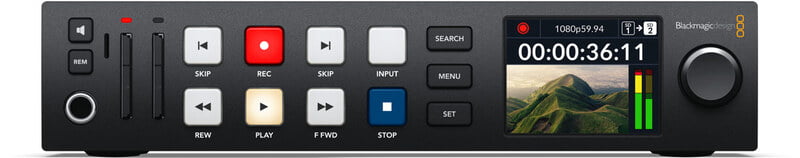

Blackmagic Design HyperDeck Studio HD Plus

Video Input

1 x BNC, 6G-SDI
1 x HDMI 2.0 Type A

Video Output

1 x BNC, 6G-SDI Loop-Out
2 x BNC, 6G-SDI
1 x HDMI Type A, 2.0
1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI)
1 x BNC, 3G-SDI (Monitor Out)

Timecode

In: 1 x BNC
Out: 1 x BNC

Reference

Tri-Sync or Black Burst
Input Connector: 1 x BNC
Output Connector: 1 x BNC

Audio Input

None (Embedded Audio Only, 16 Channels)

Audio Output

Headphone: 1 x 1/4" Phone

Device Control

2 x RS-422 Deck Control Port on DB9 Female

Ethernet

1 x RJ45 for Remote Operation

Media Interface

2 x SD Slots
Media Type: UHS I and UHS II
Format: ExFAT or HFS+

Supported Resolutions

4K
4096 x 2160p: 30/29.97/25/24/23.98
3840 x 2160p: 30/29.97/25/24/23.98

2K
2048 x 1080p: 0/29.97/25/24/23.98

HD
1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50

SD
NTSC
PAL

SDI Compliance

SMPTE 259M//292M/296M/372M/424M/425M Level A and B
SMPTE 2084
SMPTE 2108‑1

SDI Metadata Support

HD RP188 and Closed Captioning CEA‑708
HDR Metadata Supported on SDI

Video Sampling

4:2:2 YUV

Color Depth

10-Bit

Color Space

Rec. 601
Rec. 709
Rec. 2020
33-Point 3D LUTS Can Be Applied to SDI Monitor Out

HDR Support

Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084

Multi Rate Support

Autodetection of SD, HD, and 6G-SDI

Audio Sampling

Television Standard 48 kHz, 24-Bit

Supported Codecs

ProRes
HQ QuickTime
422 QuickTime
LT QuickTime
Proxy QuickTime for Formats up to 1080p60

DNxHD
220x
220x MXF
145
145 MXF
45
45 MXF for 720p and 1080p HD Formats up to 60 fps

H.264
SDI 4:2:2 10-Bit
High 4:2:0 8-Bit
Medium 4:2:0 8-Bit
Low 4:2:0 8-Bit for Progressive Formats up to 1080p60

Operating System

macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later
Windows: 10 64-Bit

Rack Height

1 RU

Power Supply

AC
100 to 240 VAC, 50/60 Hz

DC
12 VDC; 1 x 4-Pin XLR

Consumption
100 W Max

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Relative Humidity

0 to 90% Non-Condensing

Dimensions

8.27 x 6.96 x 1.74" / 21.01 x 17.68 x 4.42 cm

Weight

1.8 lb / 0.82 kg
