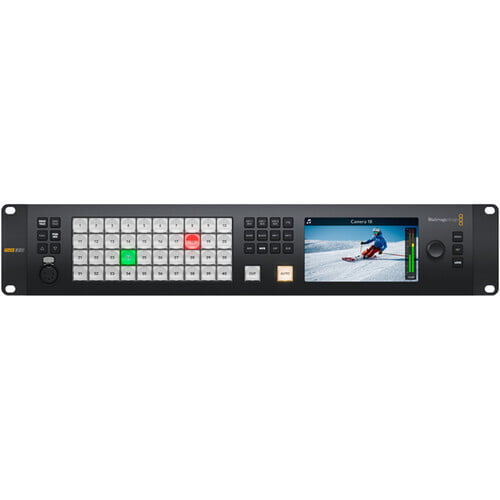

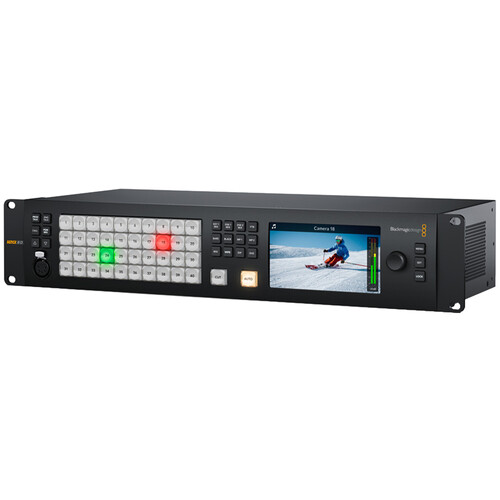

Blackmagic Design ATEM 4 M/E Constellation 4K

Total Video Inputs

40

Total Video Outputs

28

Total Aux Outputs

24

SDI Rates

1.5G, 3G, 6G, 12G.

Total Audio Inputs

2 x balanced 1/4 inch Jack,

1 x 32 stereo channel BNC MADI in,

1 x 5 pin XLR Talkback.

Total Audio Outputs

2 x balanced 1/4 inch Jack,

2 x 32 stereo channel BNC MADI out,

1 x 5 pin XLR Talkback.

Timecode Connections

None

Reference Input

Tri-Sync or Black Burst.

Video Input Re-Sync

On all 40 inputs.

Frame Rate and Format Converters

On all 40 inputs.

SDI Video Inputs

40 x 10-bit 720p, 1080i, 1080p, 2160p.

SDI Audio Inputs

8 Ch embedded audio on all SDI inputs.

Extra Audio Inputs

1 x 5 pin XLR Talkback.

SDI Video Outputs

28 x 10-bit 720p, 1080i, 1080p, 2160p.

SDI Audio Outputs

16 Ch embedded into SDI output on all outputs.

Extra Audio Outputs

1 x 5 pin XLR Talkback.

SDI Program Outputs

Any of the 24 SDI outputs.

Down Converted SDI Program Output

1

SDI Preview Outputs

Any of the 24 SDI outputs.

SDI Multi View Outputs

4

HDMI Multi View Outputs

None

Webcam Output

1 x USB-C supporting 720p or 1080p at PGM frame rate.

Remote

RJ12 supports RS-422.

Control Panel Connection

Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.

Internal Timecode Generator

Yes

Talkback

RJ45 for 3rd party talkback systems.

Tally Output

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Computer Interface

1 x USB-C port.

SD Video Standards

None

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.

SDI Compliance

SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1,

Video Sampling

4:2:2

Color Precision

10-bit.

Color Space

Rec. 709, Rec. 2020

SDI Auto Switching

Automatically detects between 1.5G-SDI, level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI.

Upstream Keyers

16

Downstream Keyers

4

Advanced Chroma Keyers

16

SuperSource

2

Talkback Support

Yes

Mix Minus Support

Yes

Linear/Luma Keyers

21

Transition Keyer (Stinger/DVE)

4 Stinger, 4 DVE.

Total Number of Layers

28

Pattern Generators

21

Color Generators

2

DVEs

4

Control Panel

Front fascia emergency switching, software or optional hardware panel.

Routable Windows

64

Tally

Red for program and green for preview indication.

Windows Source Labels

Yes

Multi View Monitoring

4 x 16 Multi View pattern options for up to 64 total views.

Multi View Video Standard

Select HD or Ultra HD.

Media Players

4

Channels

Fill and key for each media player.

Media Pool Still Image Capacity

64

Media Pool Clip Capacity

4

Media Player Clip Length in 720 HD

3200 frames.

Media Player Clip Length in 1080 HD

1600 frames.

Media Player Clip Length in Ultra HD

400 frames.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Media Pool Video File Format

TGA Sequence.

Media Pool Audio File Format

WAV, MP3 and AIFF.

Interface

Minimum monitor resolution of 1366 x 768.

Front panel

Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition

Processing Delay

< 10 lines.

Audio Mixer

156 Channel mixer

Selectable On/Off/Audio-Follow-Video.

Level and Peak metering.

Master gain control.

6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.

Down Conversion

1 x selectable HD down converted output

Power Supply

2 x Internal 100 - 240 AC 50/60Hz.

Power Usage

255 W

Physical Installation

2 rack units height.

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing
