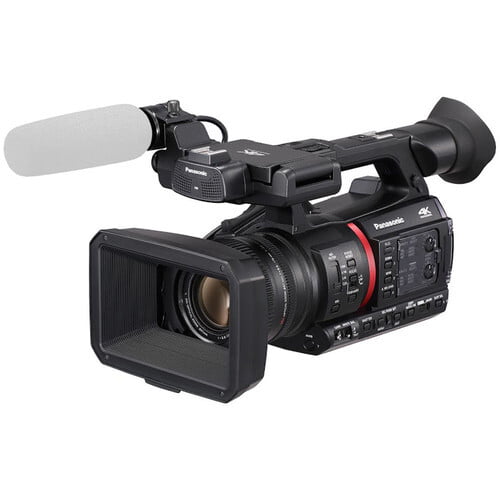

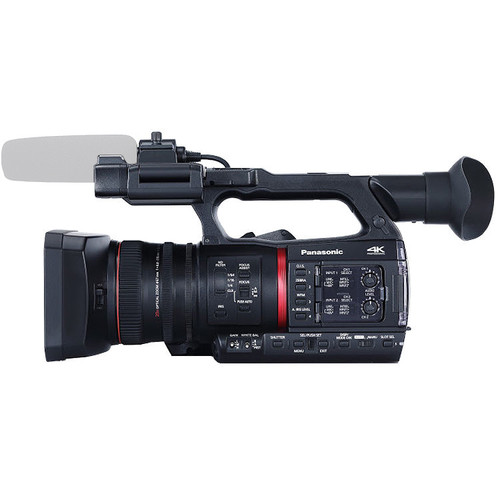

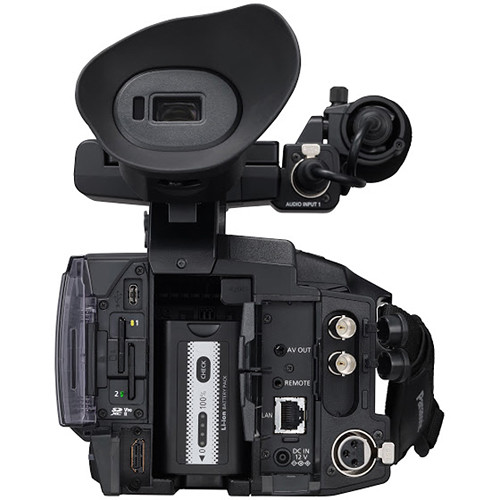

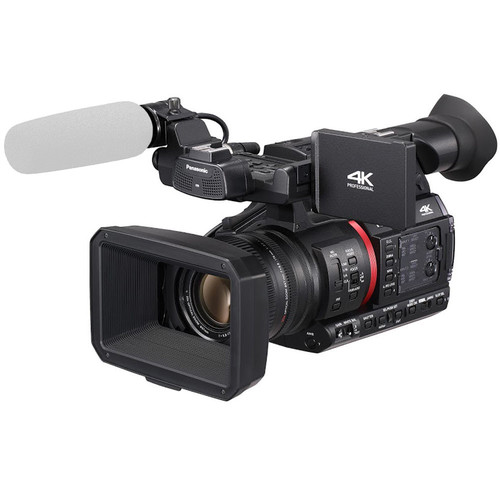

Panasonic AG-CX350 4K Camcorder

Image Sensor

1-Chip 1" MOS Sensor

Sensor Resolution

5170 x 2908 (15.00 MP)

Sensitivity

f/12 at 2000 lux 89.9% Reflectance (59.94i/p)
f/13 at 2000 lux 89.9% Reflectance (50i/p)

Focal Length

8.8 to 176mm

35mm Equivalent Focal Length

24.5 to 490mm

Optical Zoom Ratio

20x

Maximum Aperture

f/2.8 to 4.5

Minimum Focusing Distance

Wide: 3.9" / 10.0 cm
Telephoto: 3.3' / 1.0 m

Filter Size

67 mm

Control Rings

Focus
Zoom
Iris

Image Stabilization

Optical

Focus Control

Autofocus
Manual Focus

Shutter Speed

1/2 to 1/10,000 sec

Shutter Angle

3 to 360°

Scan Rate Adjustable

Yes

Built-In ND Filter

Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Built-In Microphone Type

Stereo

Recording Media

2 x SDXC/SDHC Card Slot

Recording Modes

MOV 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97 fps (400 Mb/s)
3840 x 2160p at 23.98/25/29.97 fps (100 Mb/s)
1920 x 1080p at 50/59.94 fps (200 Mb/s)
1920 x 1080p at 23.98/25/29.97 fps (100 Mb/s)
1920 x 1080i at 50/59.94 fps (100 Mb/s)
H.265 4:2:0 10-Bit:
3840 x 2160p at 50/59.94 fps (200 Mb/s)
3840 x 2160p at 23.98/25/29.97 fps (150 Mb/s)
MOV 4:2:0 8-Bit:
3840 x 2160p at 50/59.94 fps (150 Mb/s)
3840 x 2160p at 23.98/25/29.97 fps (100 Mb/s)
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1920 x 1080i at 50/59.94 fps (50 Mb/s)
AVCHD 4:2:0 8-Bit:
1920 x 1080p at 50/59.94 fps (25 Mb/s)
1920 x 1080p at 23.98 fps (21 Mb/s)
1920 x 1080i at 50/59.94 fps (21 Mb/s)
1920 x 1080i at 50/59.94 fps (17 Mb/s)
1280 x 720p at 50/59.94 fps (8 Mb/s)
720 x 576i at 50 fps (9 Mb/s)
720 x 480i at 59.94 fps (9 Mb/s)
AVC-Intra/P2:
1920 x 1080p (200 Mb/s)
1920 x 1080p (100 Mb/s)
1920 x 1080p (50 Mb/s)
1280 x 720p (200 Mb/s)
1280 x 720p (100 Mb/s)
1280 x 720p (50 Mb/s)
AVC-Intra 4:2:2:
1920 x 1080p (200 Mb/s)
AVC-LongG/P2:
1920 x 1080p (50 Mb/s)
1920 x 1080p (25 Mb/s)
1920 x 1080p (12 Mb/s)
1280 x 720p (50 Mb/s)
1280 x 720p (25 Mb/s)
1280 x 720p (12 Mb/s)

Variable Frame Rates

UHD: 1 to 60 fps
1080p: 1 to 120 fps

Audio Recording

MOV: 4-Channel 24-Bit 48 kHz LPCM Audio
AVCHD: 2-Channel 16-Bit 48 kHz

IP Streaming

Yes

Video Connectors

1 x BNC (3G-SDI) Output
1 x HDMI Output
1 x 1/8" (3.5 mm) TRRS A/V (Composite) Output

Audio Connectors

2 x 3-Pin XLR Input
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x BNC Timecode Input/Output
1 x RJ45 LAN Control, Monitor, Video
1 x USB Type-A USB 2.0 Input/Output
1 x USB Type-C USB 3.1 Gen 1
1 x 2.5 mm LANC Control Input

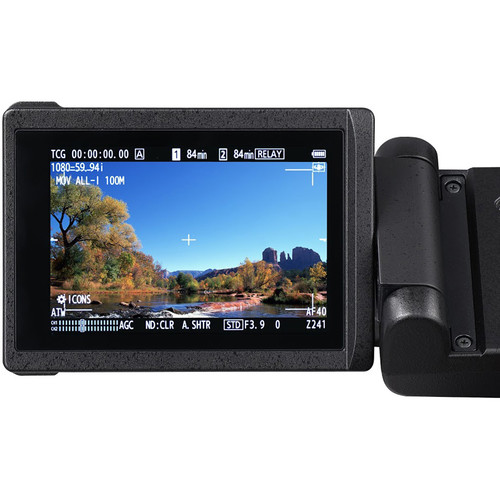

Display Type

Articulating Touchscreen LCD

Size

3.2"

Resolution

1,620,000 Dot

EVF Display Type

OLED

Screen Size

.39"

EVF Resolution

1,770,000 Dots

Battery Type

Panasonic AG-VBR Series

Power Connectors

1 x Barrel (12 VDC) Input

Power Consumption

17 W

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

10 to 80%

Accessory Mount

2 x Cold Shoe Mount
1 x 1/4"-20 Female

Tripod Mount

1/4"-20 Female

Dimensions

7.09 x 6.81 x 12.24" / 180 x 173 x 311 mm (Without Protrusions)

Weight

4.19 lb / 1.9 kg

Warranty Length

Limited 1-Year Warranty

Package Weight

10 lb

Box Dimensions (LxWxH)

19 x 14 x 11.3"
