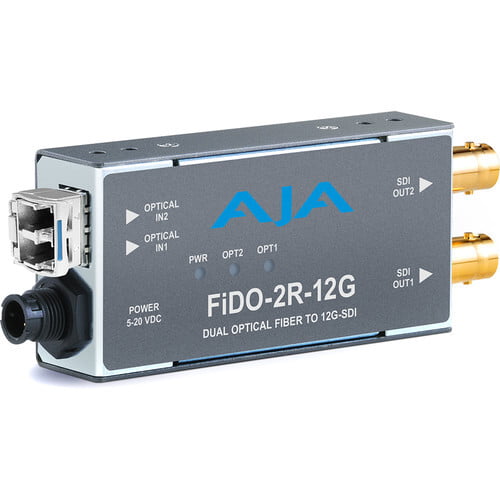

AJA FiDO-2R-12G 2-Channel Single Mode LC Fiber to 12G-SDI Receiver
$1,794.00
Tags:
FiDO-2R-12G offers unmatched flexibility and cost efficiency for 12G/6G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single mode fiber optic cable.
Product Details
SPECIFICATION
Video Formats
- 270 Mbps - 12 Gbps, format agnostic
Video Input Digital
- 2-channel independent Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
- Optical Sensitivity: -9 dBm (min 12 Gbps), -10 dBm (min 3 Gbps)
- Overload Power: -2 dBm (min)
Video Output Digital
- 2-channel independent 12G-SDI BNC Outputs, SMPTE 259/292/424/2081/2082
Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- All other rates are passed through and not reclocked
Size (w x d x h)
- 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)
Weight
- 0.4 lb (0.2 kg)
Power
- 2 watts (max)
- Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
