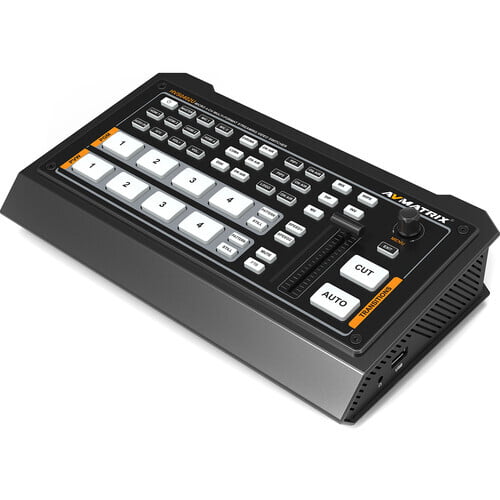

AVMATRIX HVS0402U 4-Channel Live Streaming Video Switcher

Available M/E Layers

2 M/E

Effect Types

Graphics Memory

32 Images

Downstream Keys

1 x Chroma, Luma, DVE

Generators

2 x Color
1 x Pattern

Audio Mixing

2-Channel Mixing

Switching Type

Pushbutton, Software, T-Bar

Processing Resolution

1080p

Color Processing

YUV
RGB

Number of Video Input Sources

4

Video Input Connectors

4 x HDMI Female

Input Video Format

HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 50 fps
PAL 50 fps
480p 59.94/60 fps
NTSC 59.94/60 fps

Audio Input Connectors

2 x 1/8" / 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI: 2-Channel (per Input)

Video Output Channels

2

Video Output Connectors

1 x HDMI Female (Program)
1 x HDMI Female (Monitor)
1 x USB Type-C (USB Video) Female

Output Video Format

HDMI
1080p at 24/25/30/50/60 fps
1080i 50/60 fps
USB Type-C
1080p at 60 fps

Audio Output Connectors

1 x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output)

Output Audio Format

Analog

Embedded Audio Output

HDMI: 2-Channel (per Output)
USB Type-C: 2-Channel (per Output)

Multiview Output

4-Way Multiview viaHDMI

Monitor Output

1 x HDMI

Other I/O

1 x DE-15/DB-15 Tally Input
1 x RJ45 LAN Input/Output
1 x USB Type-A Firmware, Service Input

Video Standard Compliance

SMPTE 259M/292M/424M

HDCP Support

None

Compatible Services

Facebook Live, Livestream, Skype, Twitch, YouTube Live

Recording Media

1 x USB 2.0 Type-A (External Drives)

Power Connector

1 x Barrel (7 to 24 VDC) Input

Power Consumption

Device: 12 VDC at 1 A (12 W)
Power Supply: 12 VDC at 2 A

Operating Temperature

-4 to 140°F / -20 to 60°C

Storage Temperature

-22 to 158°F / -30 to 70°C

Dimensions

9.63 x 5.64 x 1.75" / 24.45 x 14.32 x 4.45 cm

Weight

2.3 lb / 1 kg

Package Weight

Box Dimensions (LxWxH)

13 x 7.7 x 3.5"
